Lukes Laboratory

Phaetus Dragonfly BMO - Black Only

Color — Black
Regular price
Sale price

    Product Details

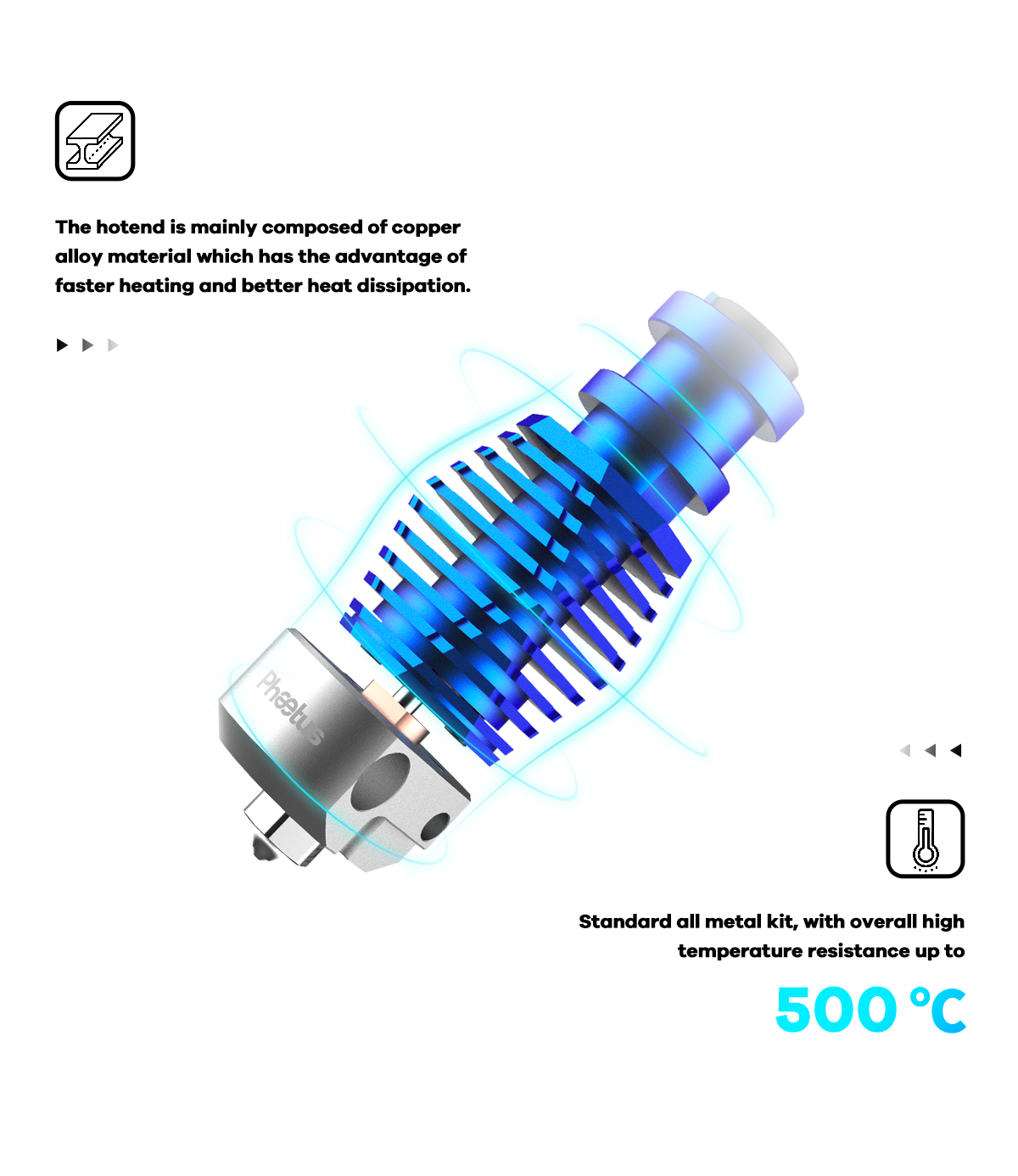

    • The hotend’s core parts are mainly composed of copper alloy for excellent heat conduction
    • Overall high-temperature resistance up to 500℃

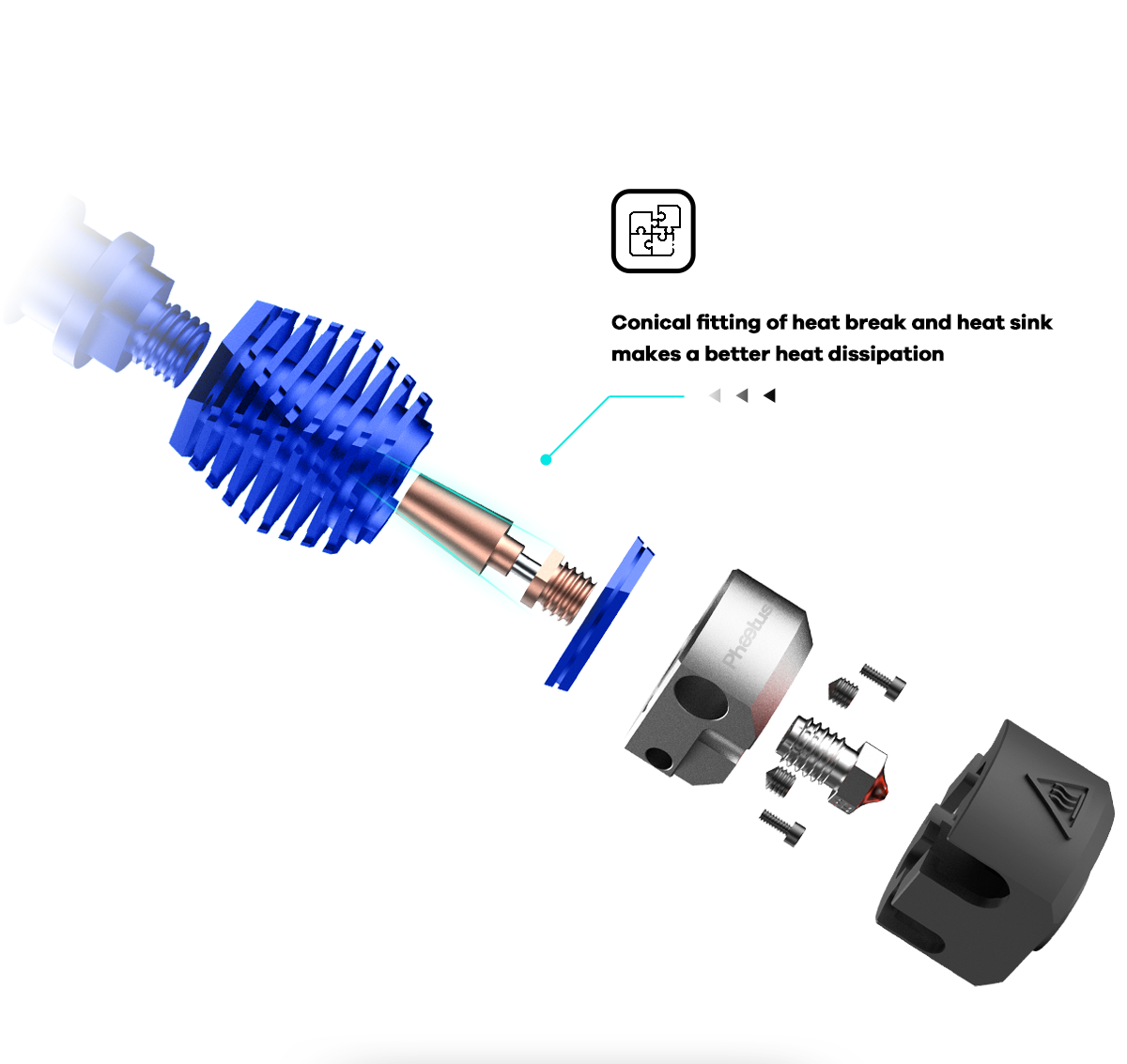

    • Heatsink and Heatbreak coupled with conical clamp
    • Low surface roughness increases heat dissipation from heatbreak and heatsink

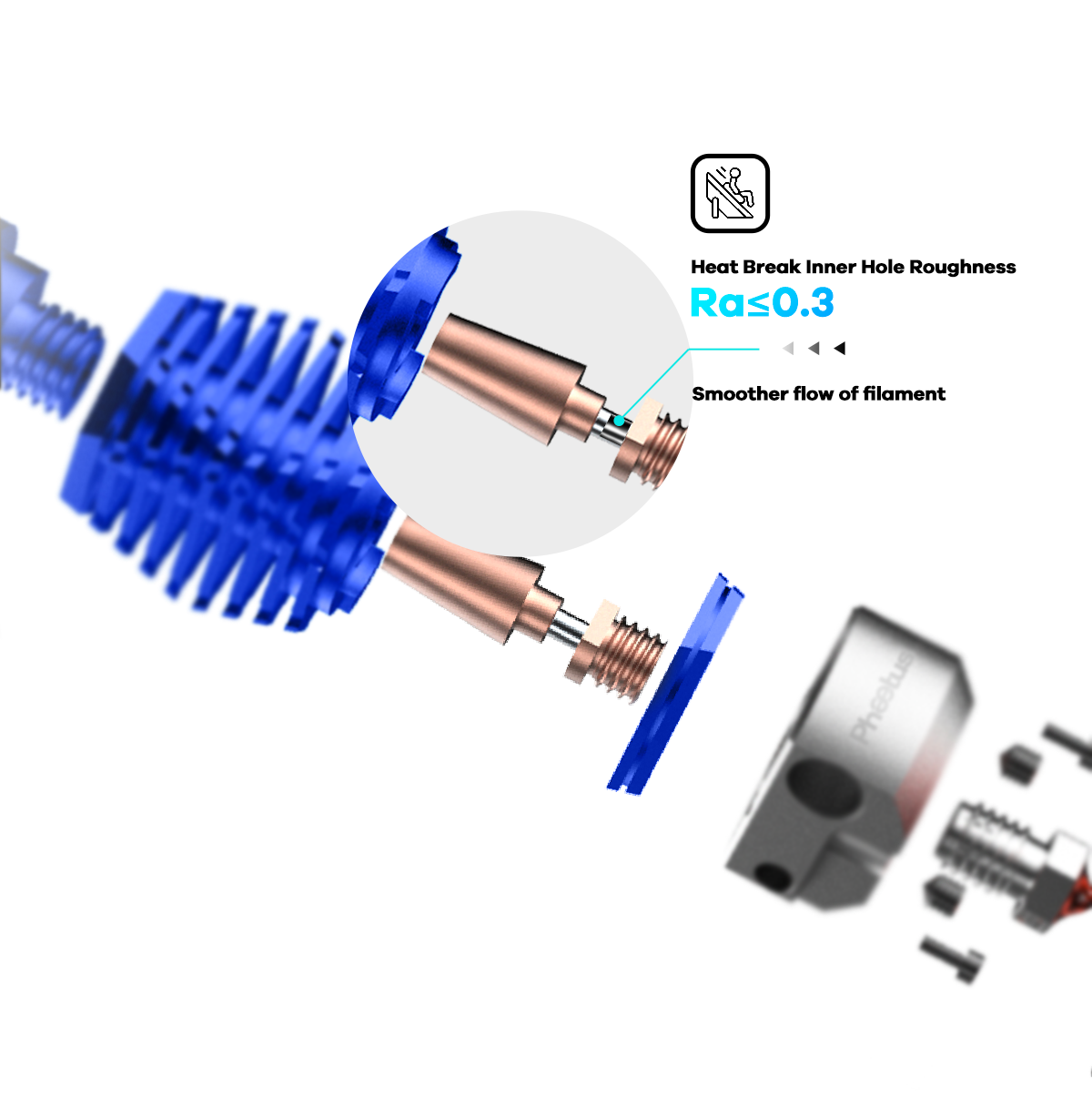

    • The inner hole roughness of the heat break ≤Ra0.3 for smooth flow
    • Bimetallic construction significantly reduces jamming from poor heatbreak transition


    • Cr-10 v2/v3
    • Prusa I3 MK3/MK3S
    • Titan extruders
    • BMG extruders

    COMPATIBLE WITH ALL FILAMENTS - PLA, ABS, ASA, HIPS, PET, PETG, PP, TPU, TPE, PVA, Nylon, PC, PEEK, PEKK, PEI, PSU, PPSU, Including Carbon, Glass, and Glow-filled variants!

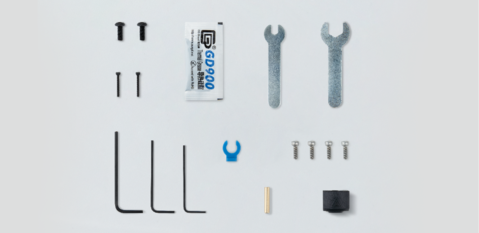

    • Allen Keys (1.27/1.50/2.00)
    • Open wrench (5mm/12mm each)
    • M1.4 Inner hexagon screws 2pcs
    • M2.5 Hexagon socket head screws 4pcs
    • M3 Fastening screws 2pcs
    • Collet clips 1pc
    • Silicone sock 1pc
    • Thermal conductive silicone 1pc

    Technical Specification:

    • Included Nozzle: Plated copper 0.4
    • Size: 10*6*4cm
    • Material Process: High strength and high conductivity plated copper, hexahedron hardened steel, high-quality brass alloy, and low-density high strength aluminum alloy
    • Net Weight: 105g
