Calamity Toolhead - Complete Toolhead
- Regular price
-
$505.00 - Regular price
-
- Sale price
-
$505.00
Couldn't load pickup availability
Have you ever thought "Man, I really wish my toolhead had more metal!" Well, Now is the time to realize that.

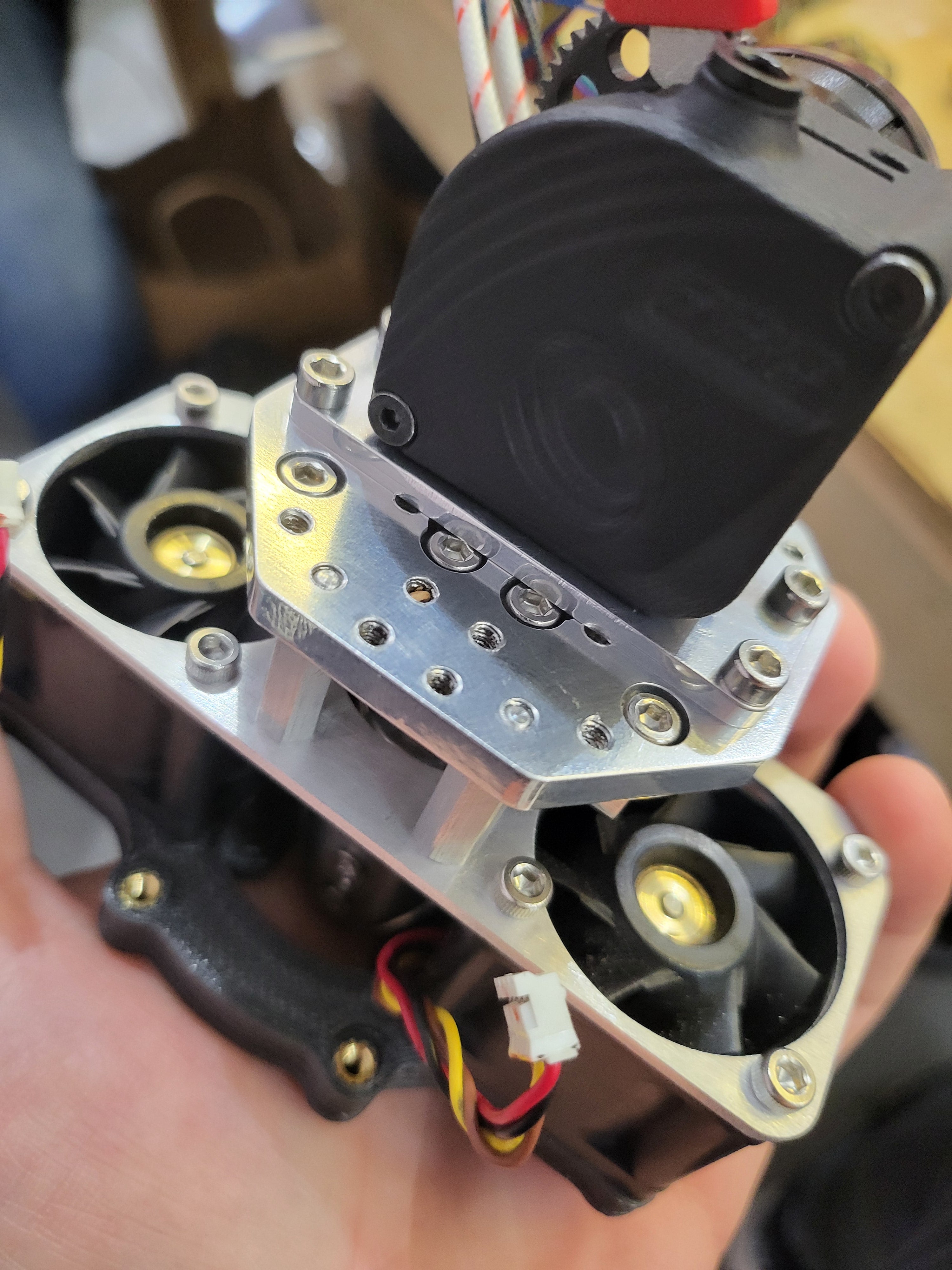

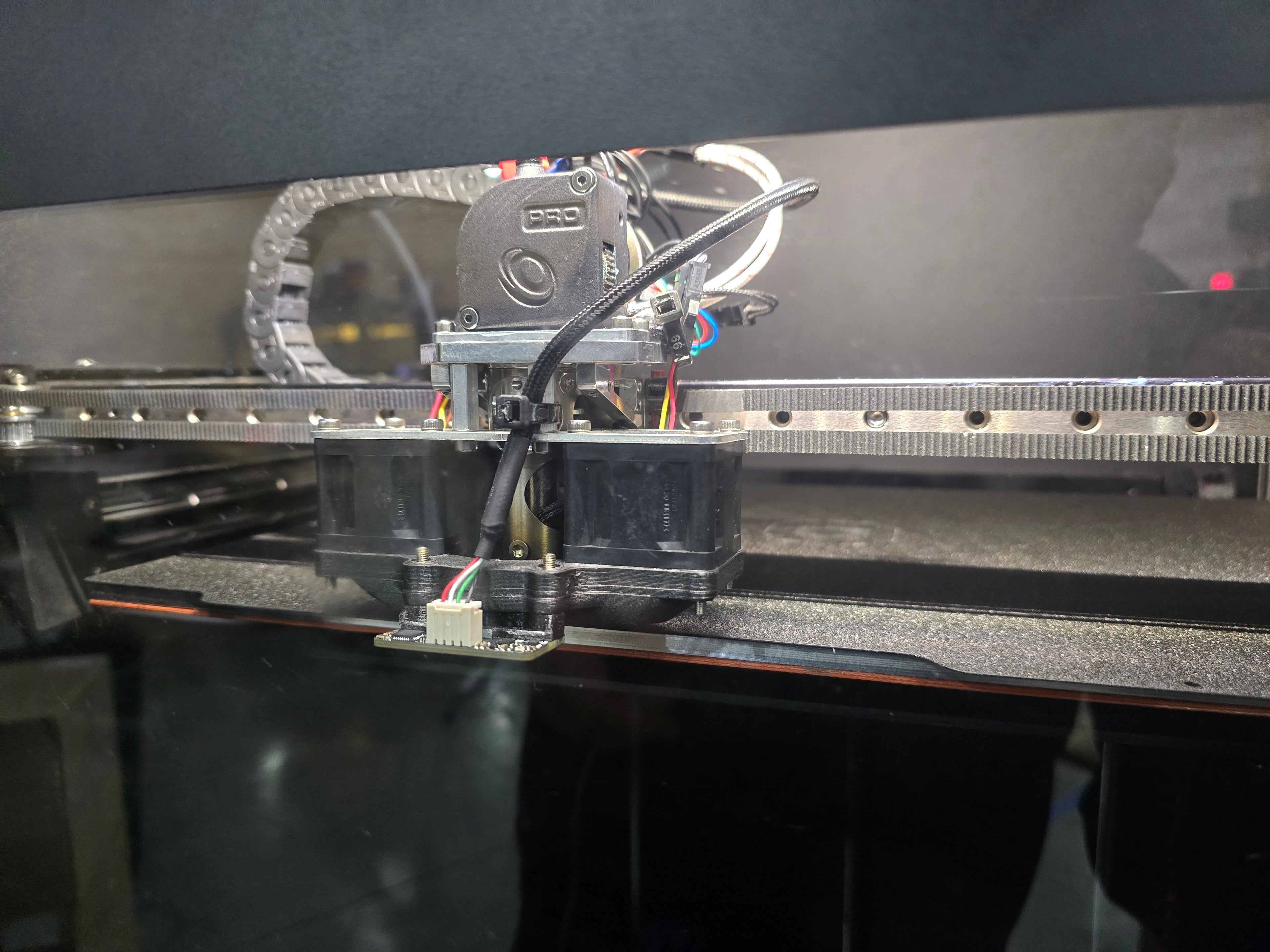

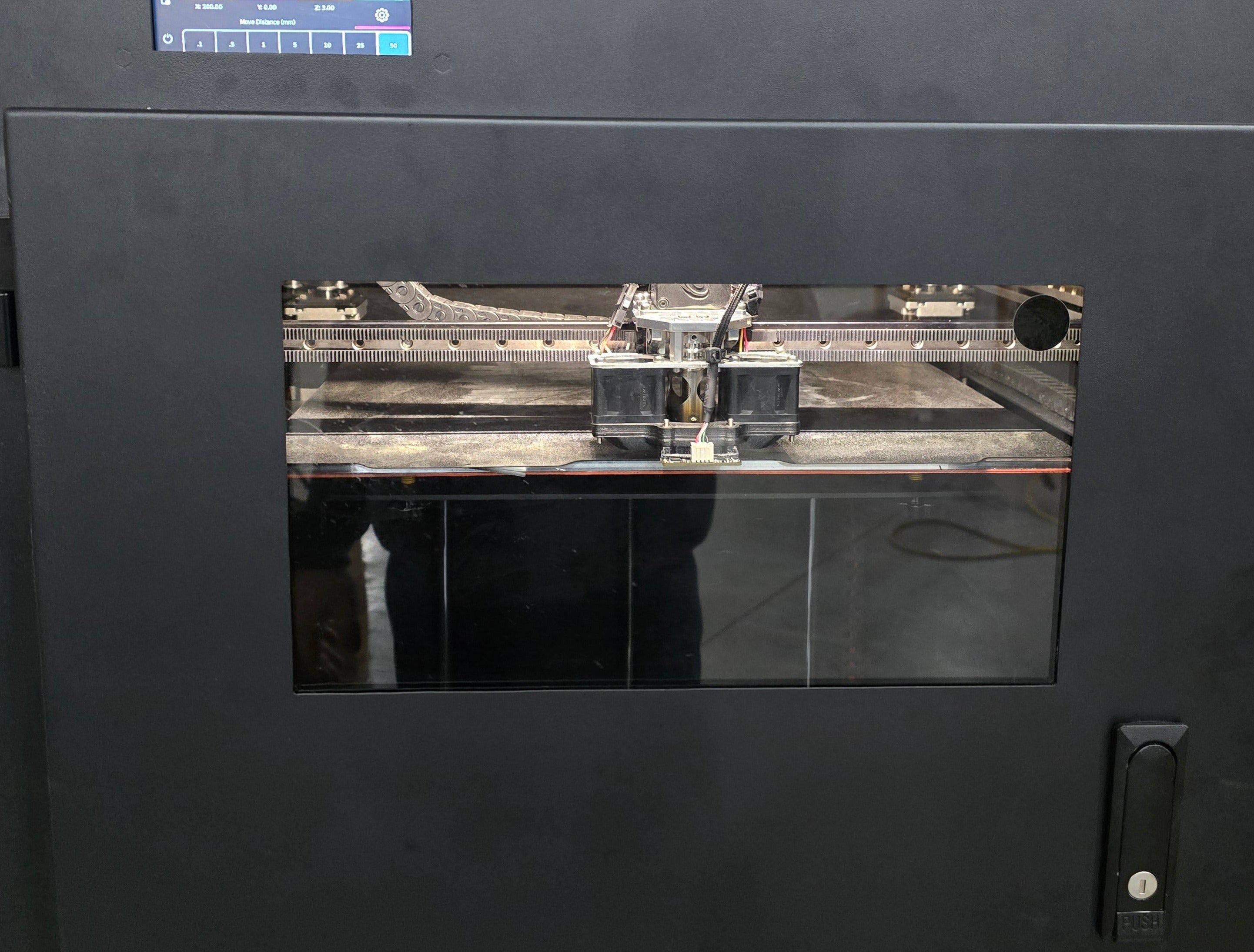

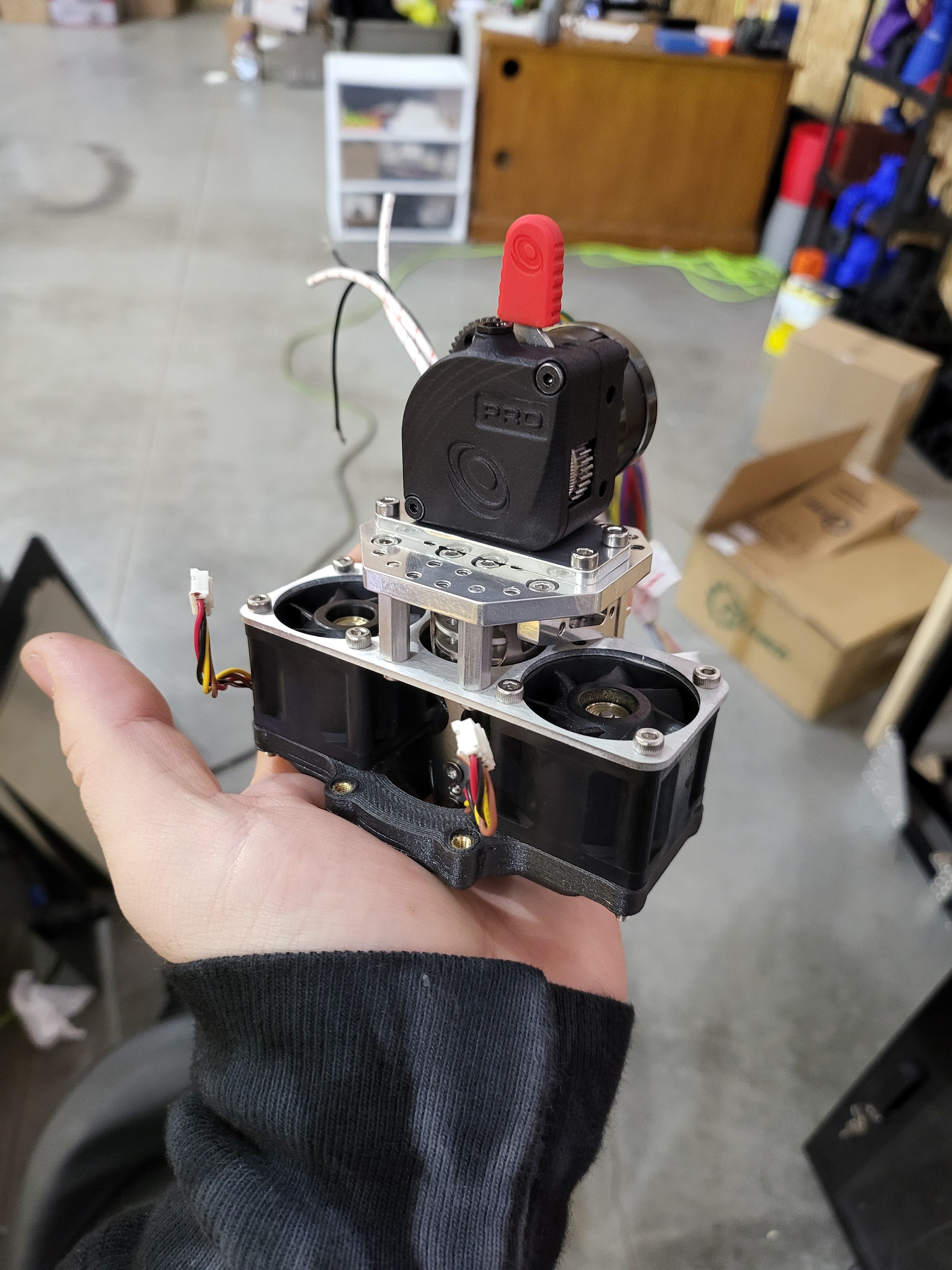

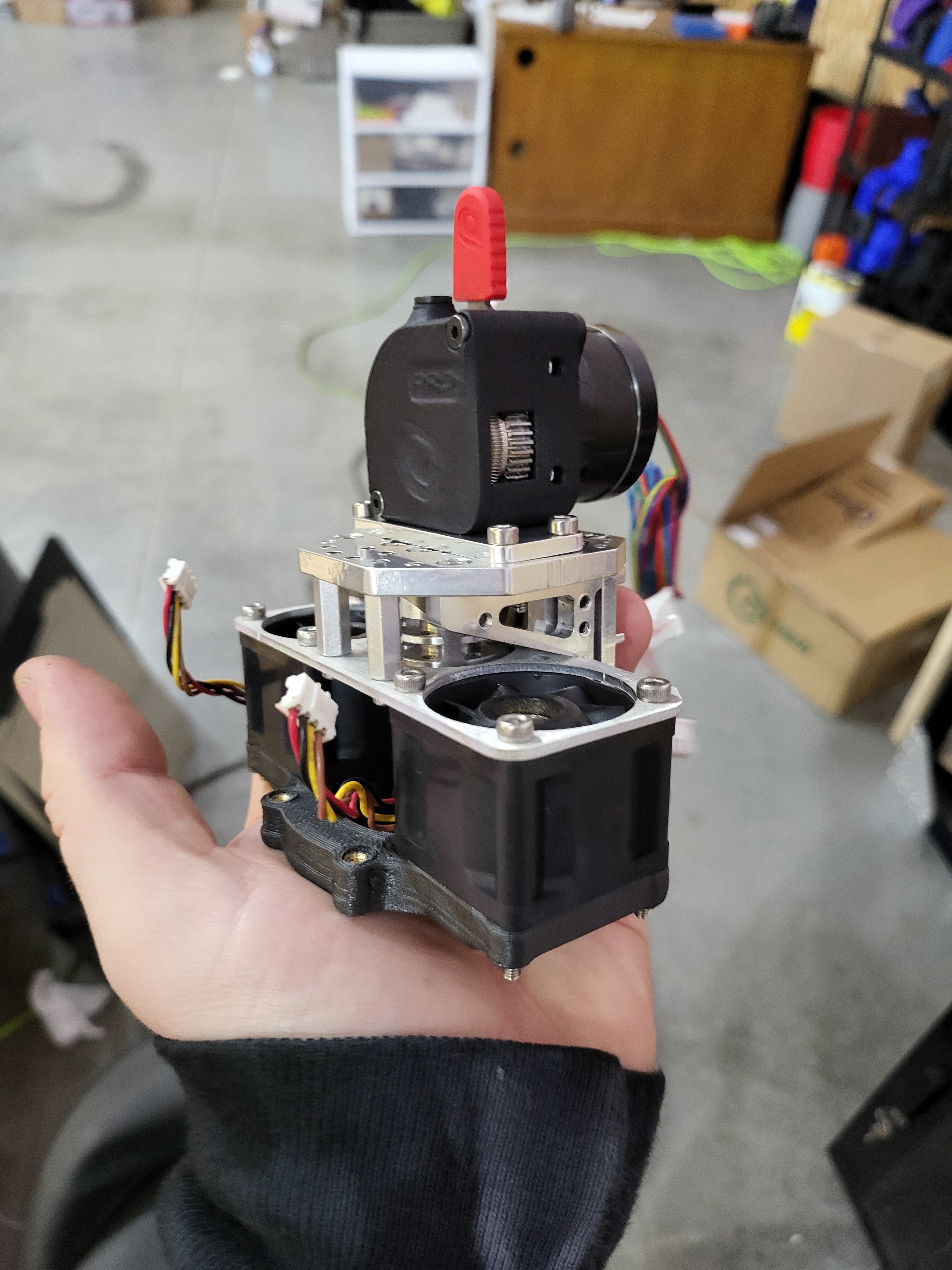

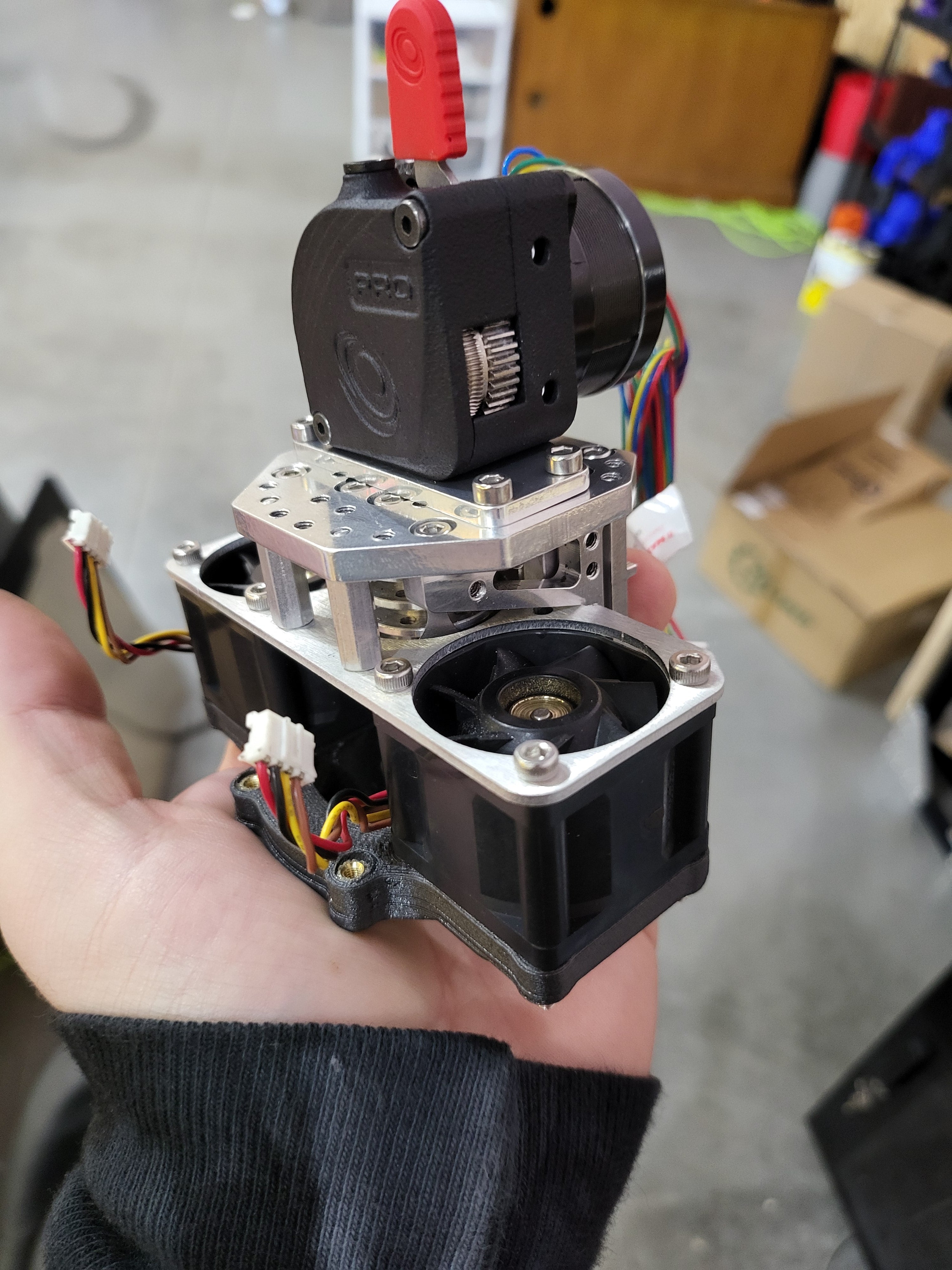

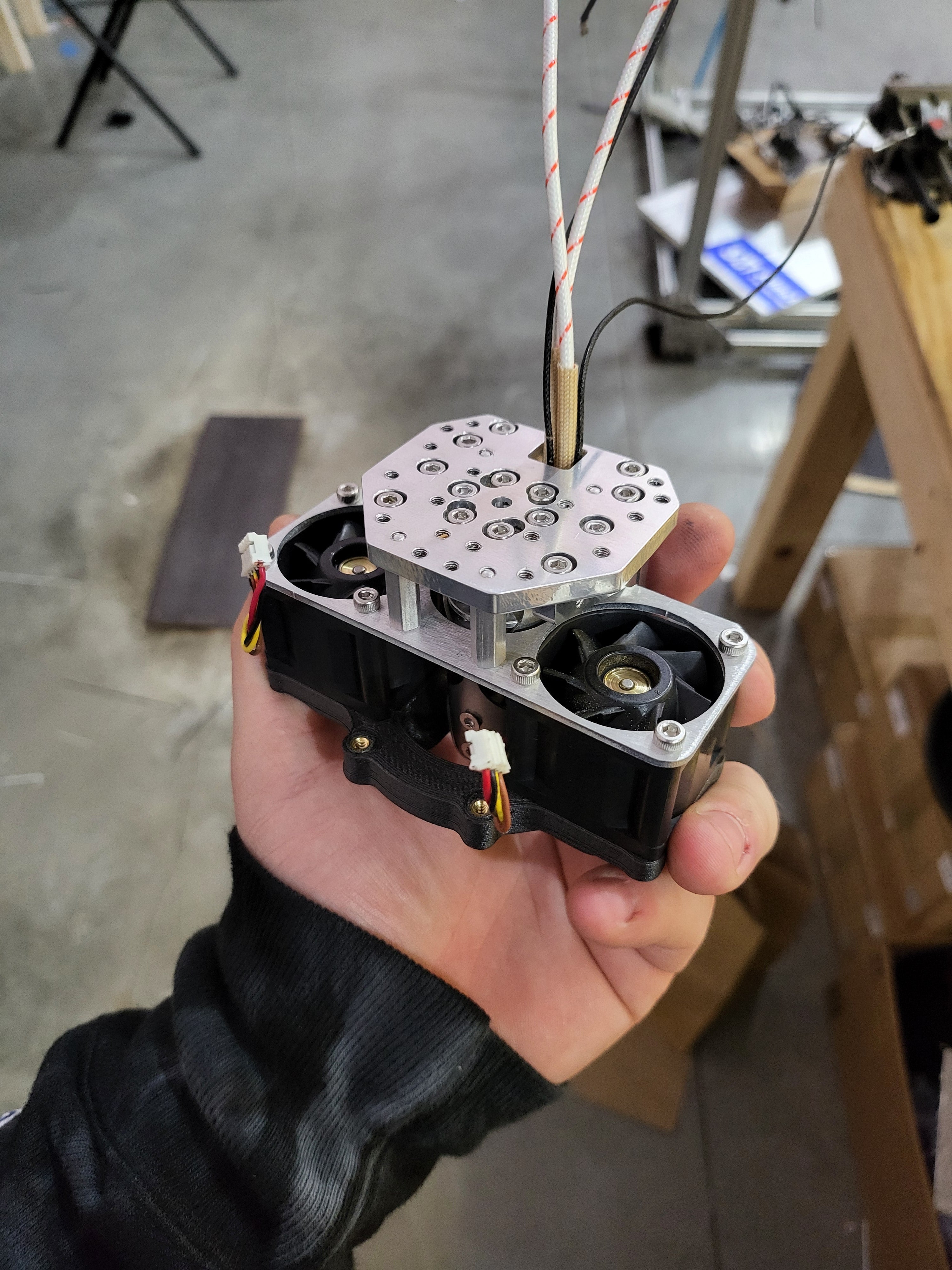

Introducing the Calamity Toolhead, currently in Open Beta- An easy-to-maintain, rigid, and fully metal toolhead that eliminates yet another failure point in your 3d printer for better productivity.
CAD: https://github.com/lukeslaboratory/Calamity-Toolhead

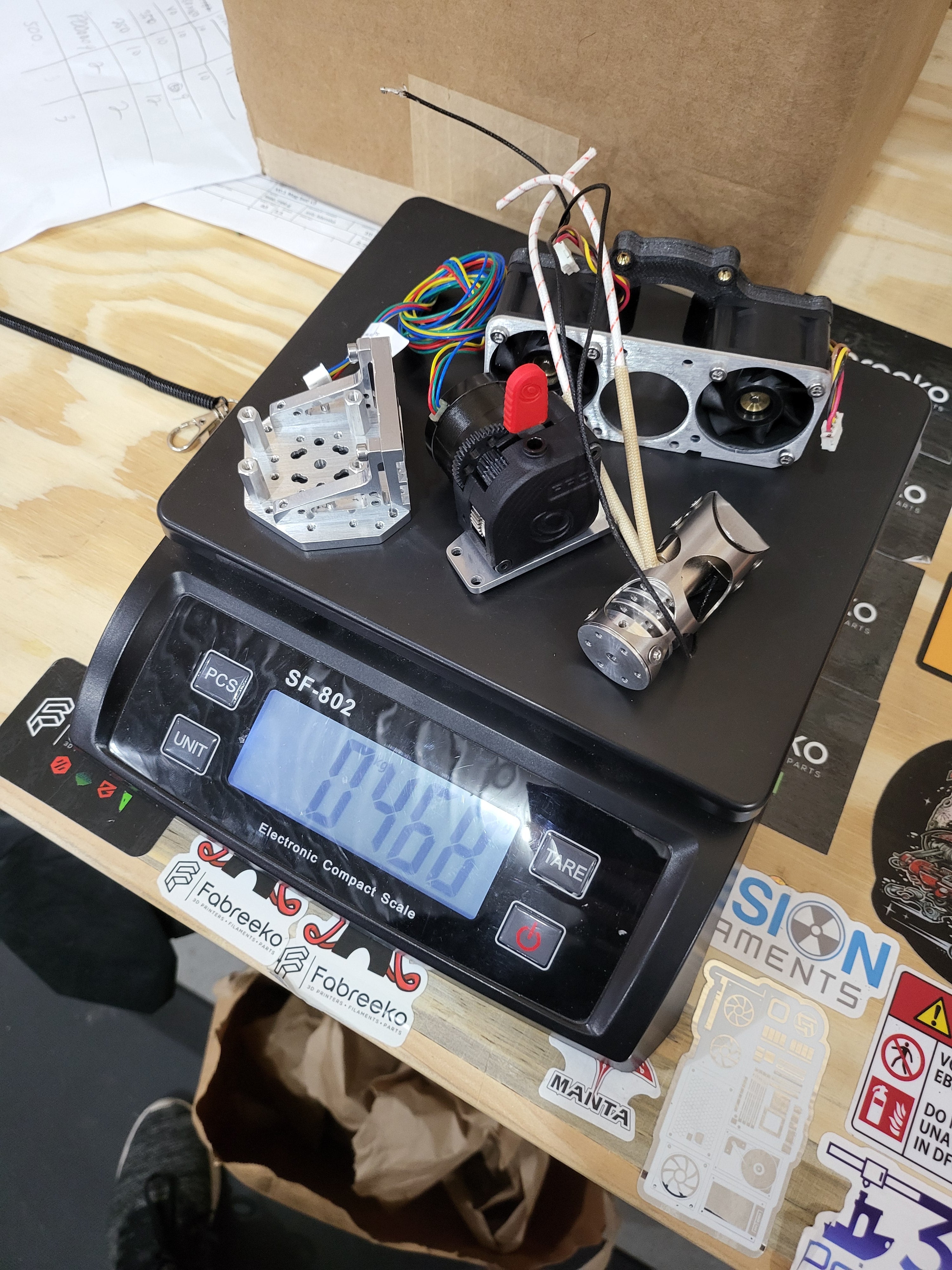

Fully compatible with Voron belt paths up to 10mm wide (only with mgn12 rail), the Calamity Toolhead provides strength while weighing in at under 500g, fully loaded, with a Chube Air, Lgx Lite Pro, and 3628 fans.
Metal Toolhead is at its maximum 55.20 mm wide before fans - Should be compatible with Printers for Ants with 4010 fans
Key Features:
- Voron Belt Path Compatible (up to 10mm belt on MGN12 version)
- Common Hotend Patterns - Chube, Goliath/Dragon/V9, and Mosquito patterns all integrated
- Currently compatible with 4 extruders - Sherpa, LGX Lite Pro, vzHextrudort, and A3DP FXD. More extruders TBD (Currently planning on LGX, LGX Metal, Orbiter v2, Chariot, OA/DFA)
- Extra mounting holes for whatever you feel like attaching - New fan configurations, filament sensors, different extruders, LEDS, Toolboards, Wire management, and whatever else you can dream up.
- Wire Routing accommodations integrated to keep toolhead maintainable and attractive
A limited quantity of Beta Toolheads are available. Price will likely increase slightly after beta. Beta Toolheads will be made by Verris, who will be receiving a portion of proceeds of beta run.
This is for a complete toolhead with limited customization options. If you want to do a more BYOB experience, choose the barebones version
Includes:
- Complete Calamity Toolhead Metal parts
- Chube as configured
- Beacon as configured
- Extruder as Configured with adapter plate
- 2x 3628 fans Delta FFB03612EHNYCL
- Printed Ducts for Fans + Beacon in PC-CF
