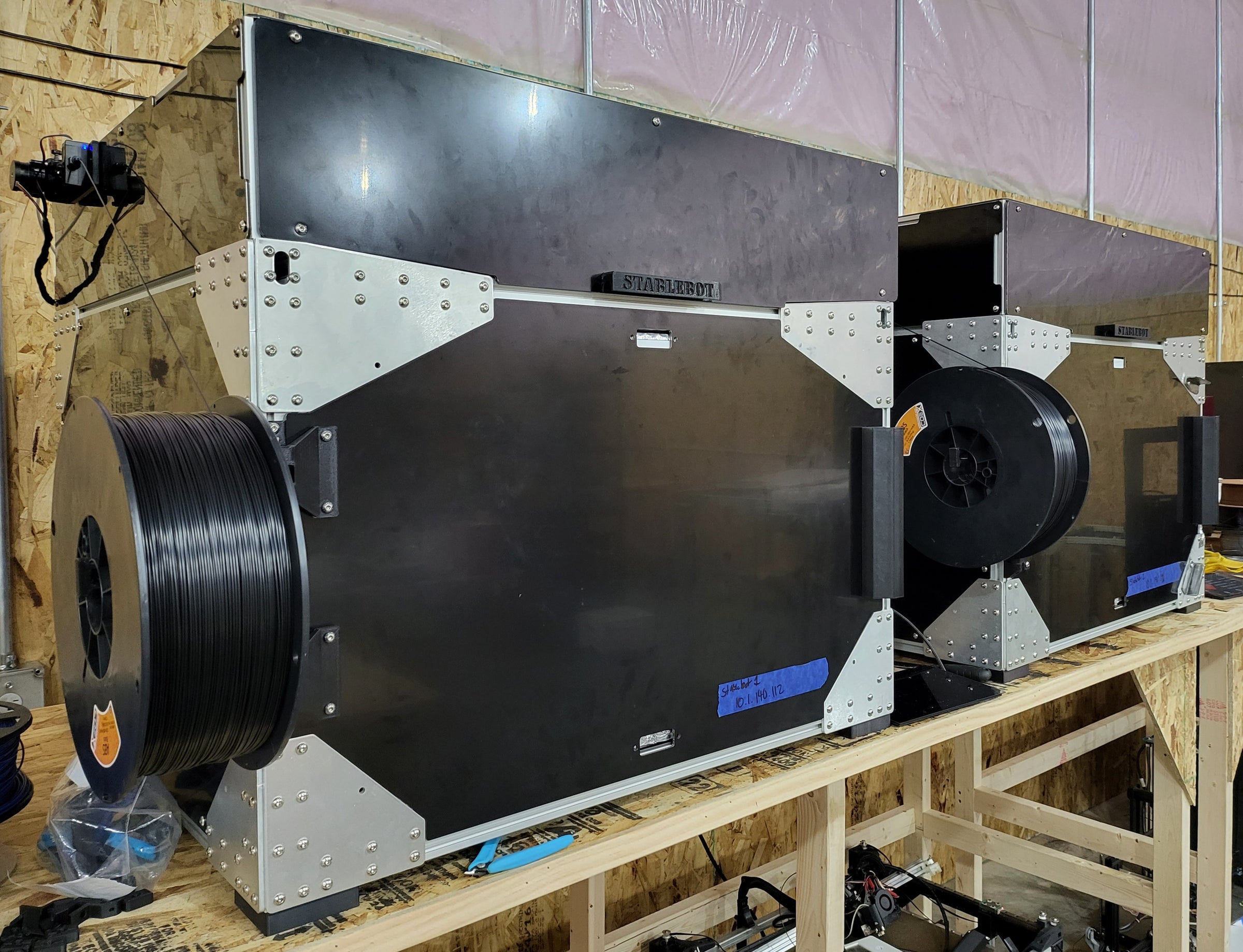

Stablebot Printers

Stablebot printers are printers that you can build at home that are excellent platforms to build, tinker, and experiment with, while still providing a workhorse experience that continues cranking out parts day-in, day-out.

There are several ways to have one of these for yourself! Easiest to hardest, one can:

  • Purchase Completed, Assembled, and Calibrated printer from my shop

  • Purchase complete kit and assemble it yourself

  • Purchase Joints Kit - Laser cut pieces that all sizes of stablebot can use

  • Self-sourcing

Key features common to both machine platforms:

  • Any-size construction with the same, rigid aluminum joints

    • Scale extrusion + linear rail Z-screws, and bed and away you go!

  • Repeatable, Fast motion

    • Genuine Gates 9mm belts, Pulleys, and Idlers

    • MGN12 Linear rail

    • Parallel Belts

    • Genuine Gates Idlers

    • Pulleys supported in Double-Shear

  • Klipper or RRF firmware

    • Both With SBC implementations

  • Consistent performance at high temperatures

    • Kinematically mounted to allow for expansion

    • Mic6 bed for optimal flatness and warp-free heating

  • AC heated @ .4 w/cm^2

    • SSR controlled, with TCO Fuse

  • Dual-sided PEI Magnetic Beds

    • Smooth+Textured surface

    • Magnets rated to 140C

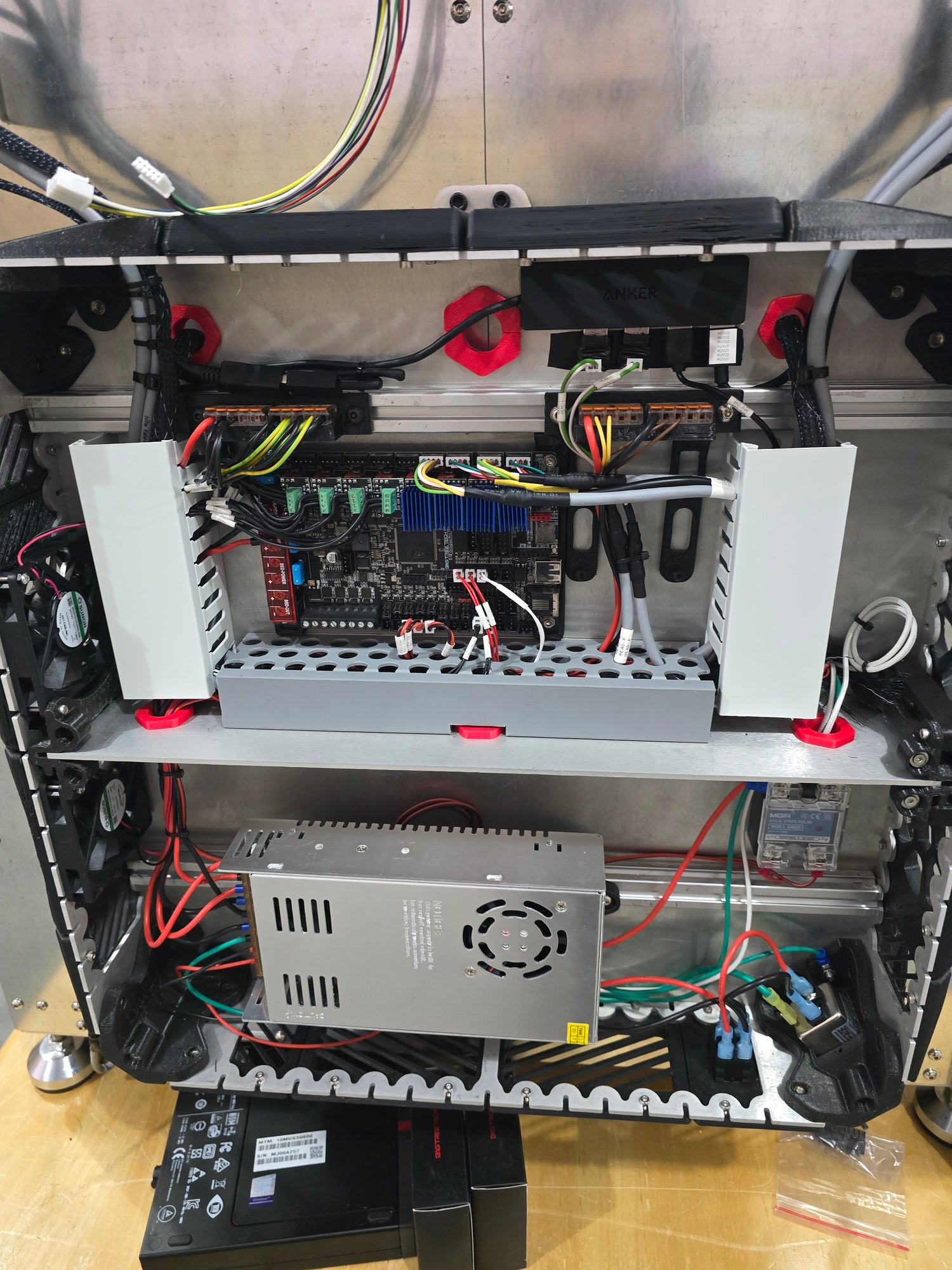

  • High-Wattage 24V + Seperate 5V PSU’s

    • For any tool

    • Easily add expansions, high-powered tools

  • Mesh Levelling

  • Auto-calibration -

    • Auto Bed Tilt, Auto Gantry Level

  • High Temp Capable

  • Consistently routed wire paths protected by cable chains

    • Toolchanger pending**



Unique Features of the Stablebot Core

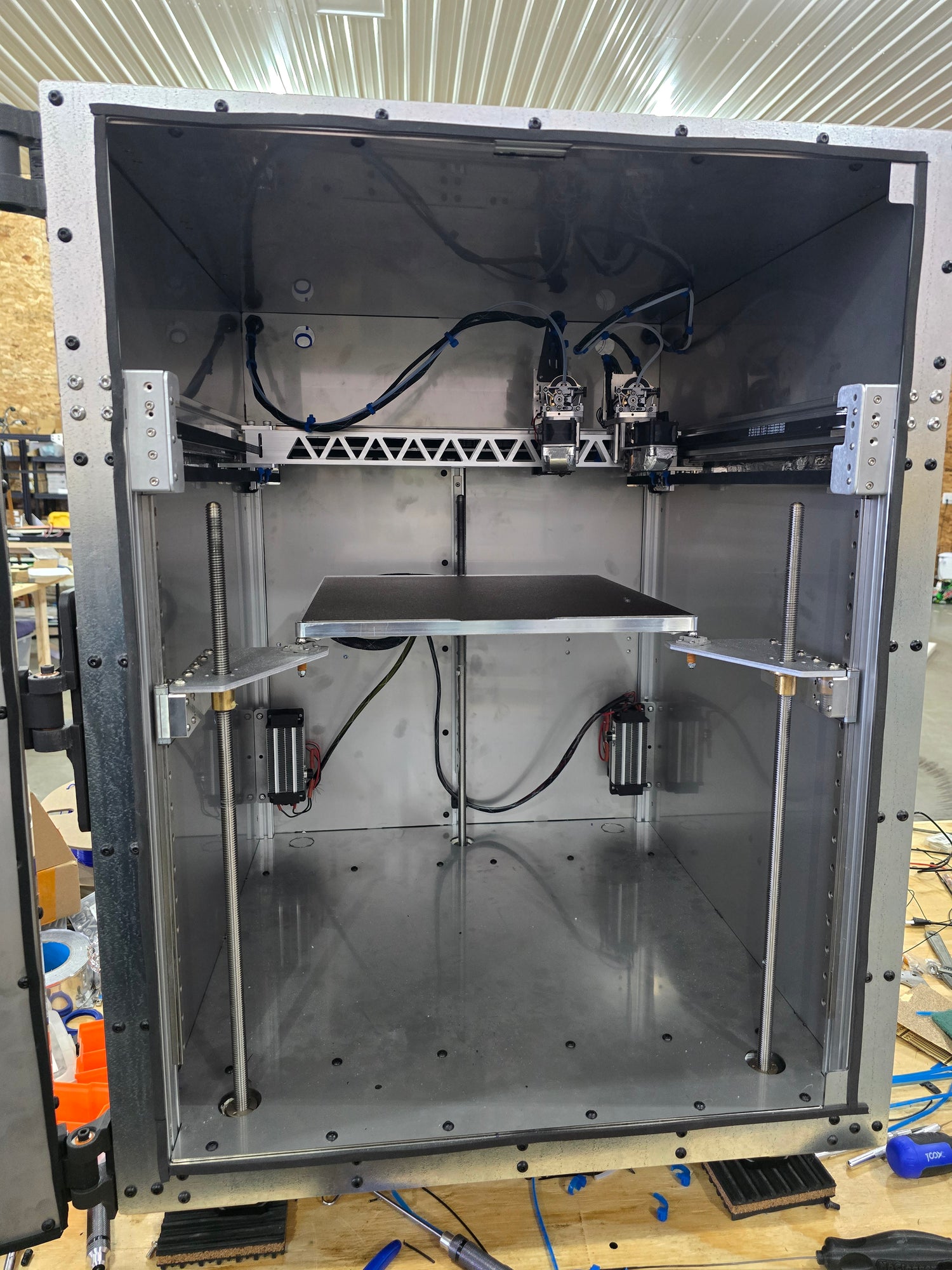

  • Triple Z Lead screws for true levelling

  • 2040 Gantry

  • CoreXY Motion System

  • Toolchanger Upgrade path

    • Jubilee REL

    • E3D Toolchanger

  • Protected belt path

Unique Features of Stablebot Slinger

  • Simple i3 Motion

  • Fully boxed frame - No motion outside of envelope of extrusion - can use simple paneling to enclose w/out modification

  • IDEX Capable - Add another head+motor and re-route wiring

  • Cost-effective for speed+size
