Calamity Toolhead - Electronics & Fans
- Regular price
-
$340.00 - Regular price
-
- Sale price
-
$340.00
Couldn't load pickup availability
Have you ever thought "Man, I really wish my toolhead had more metal!" Well, Now is the time to realize that.

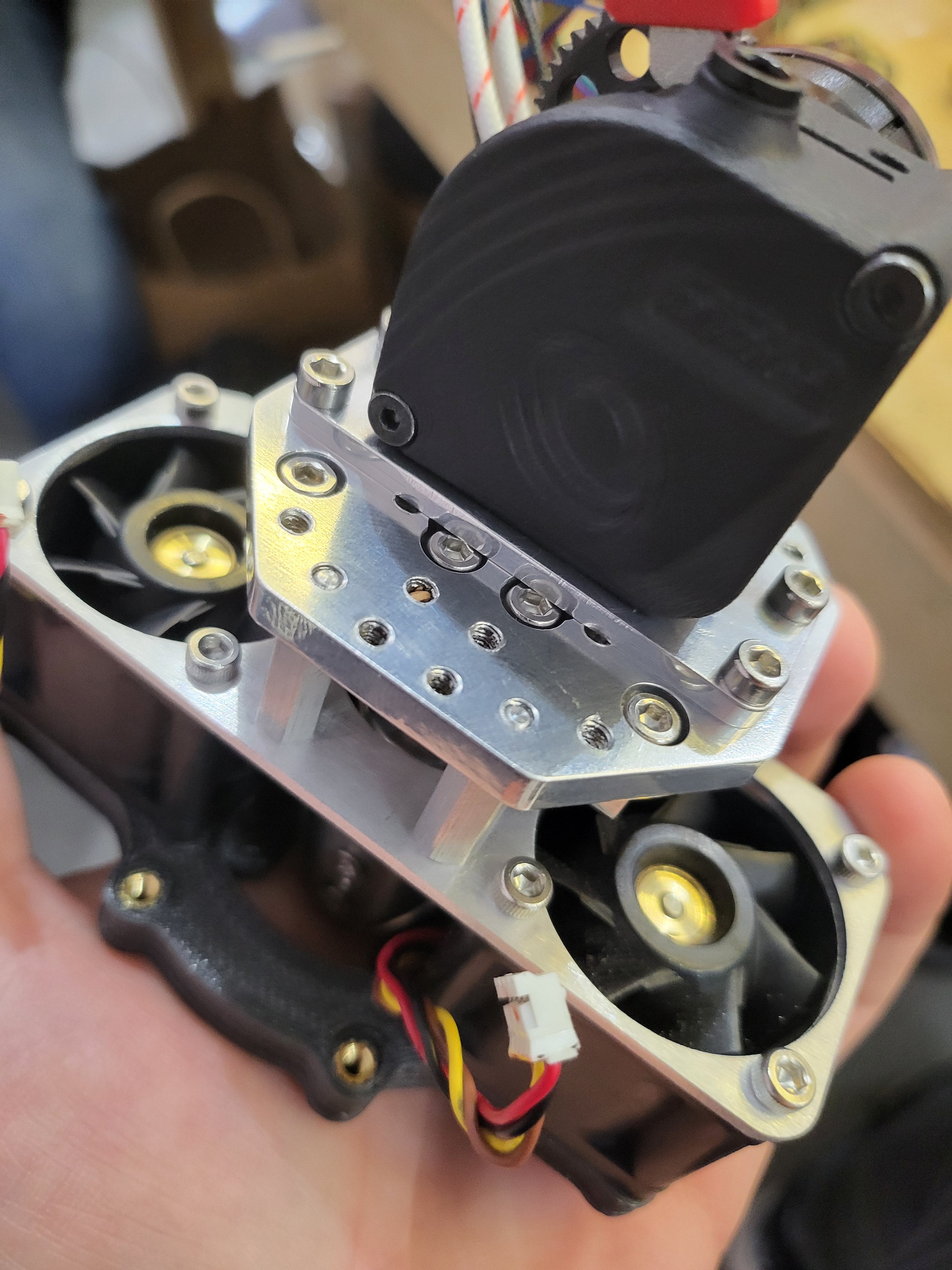

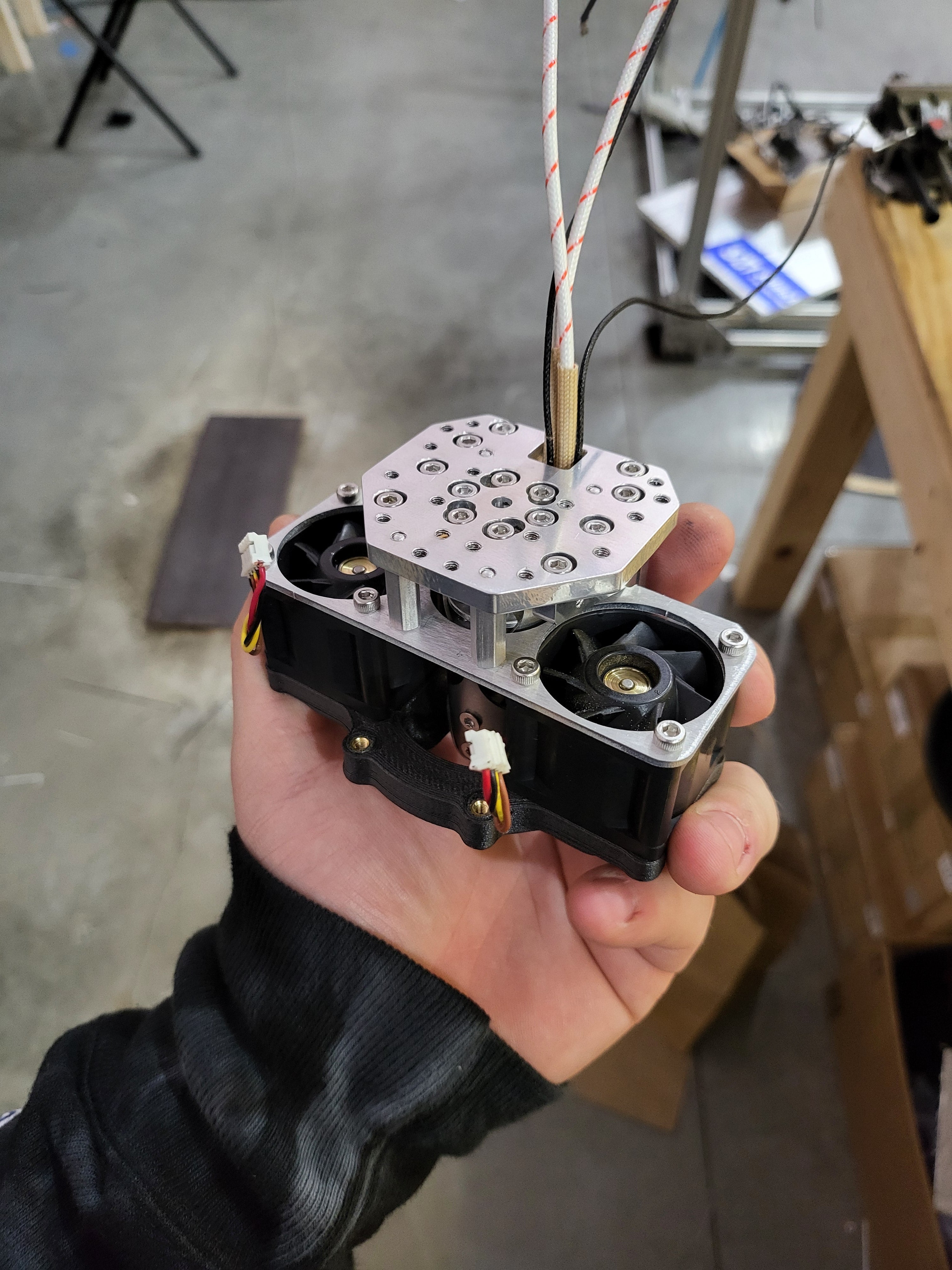

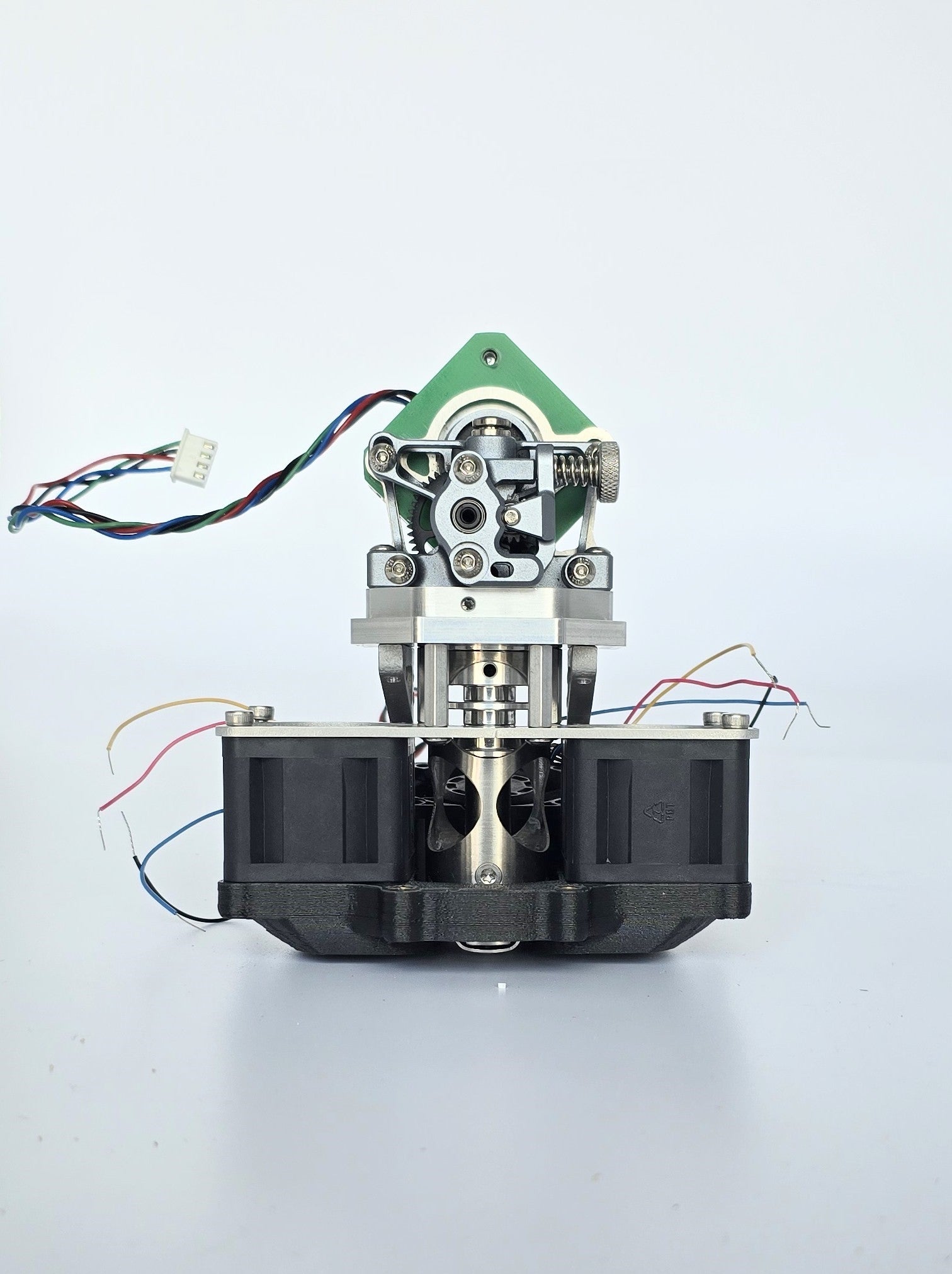

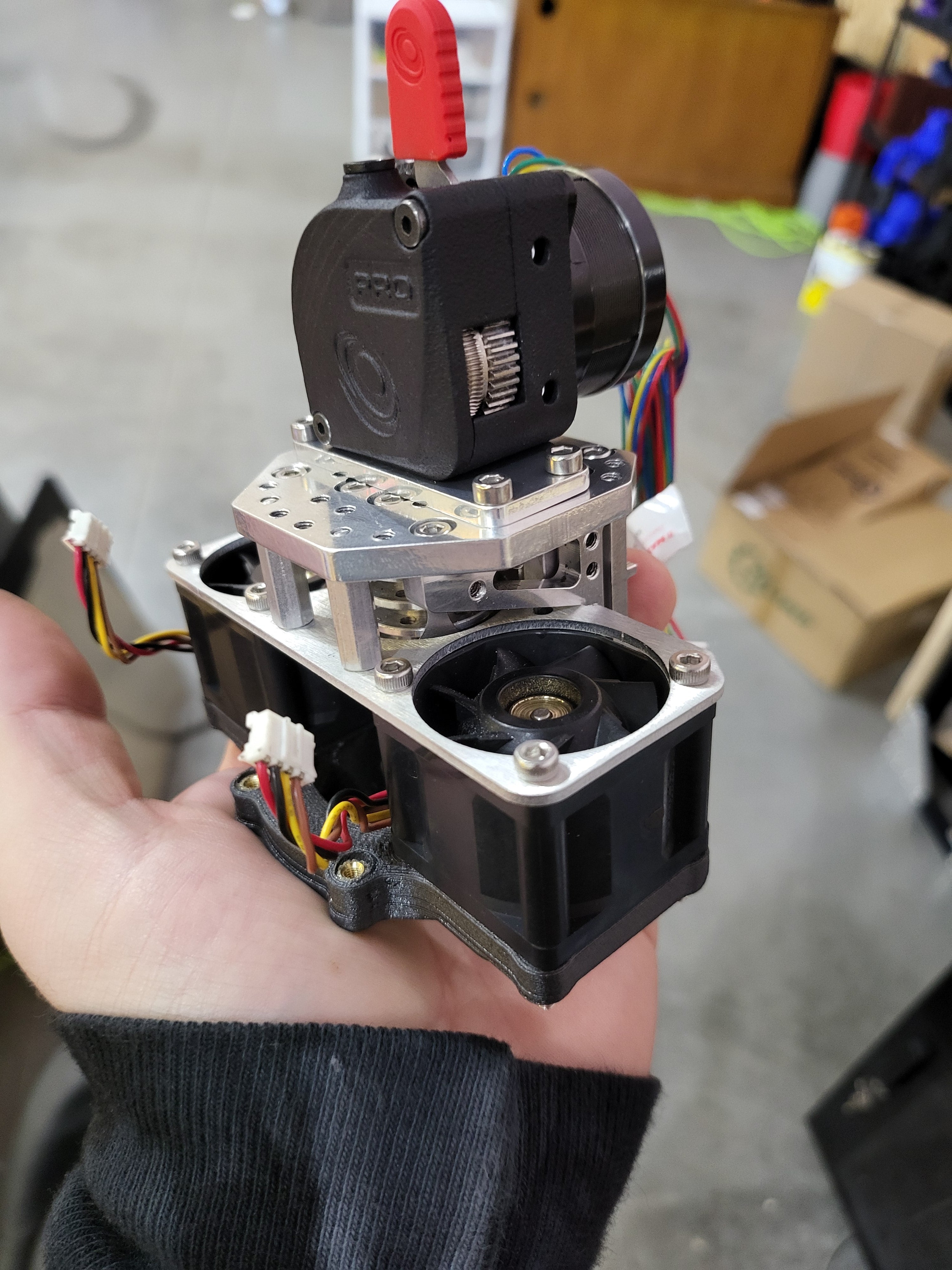

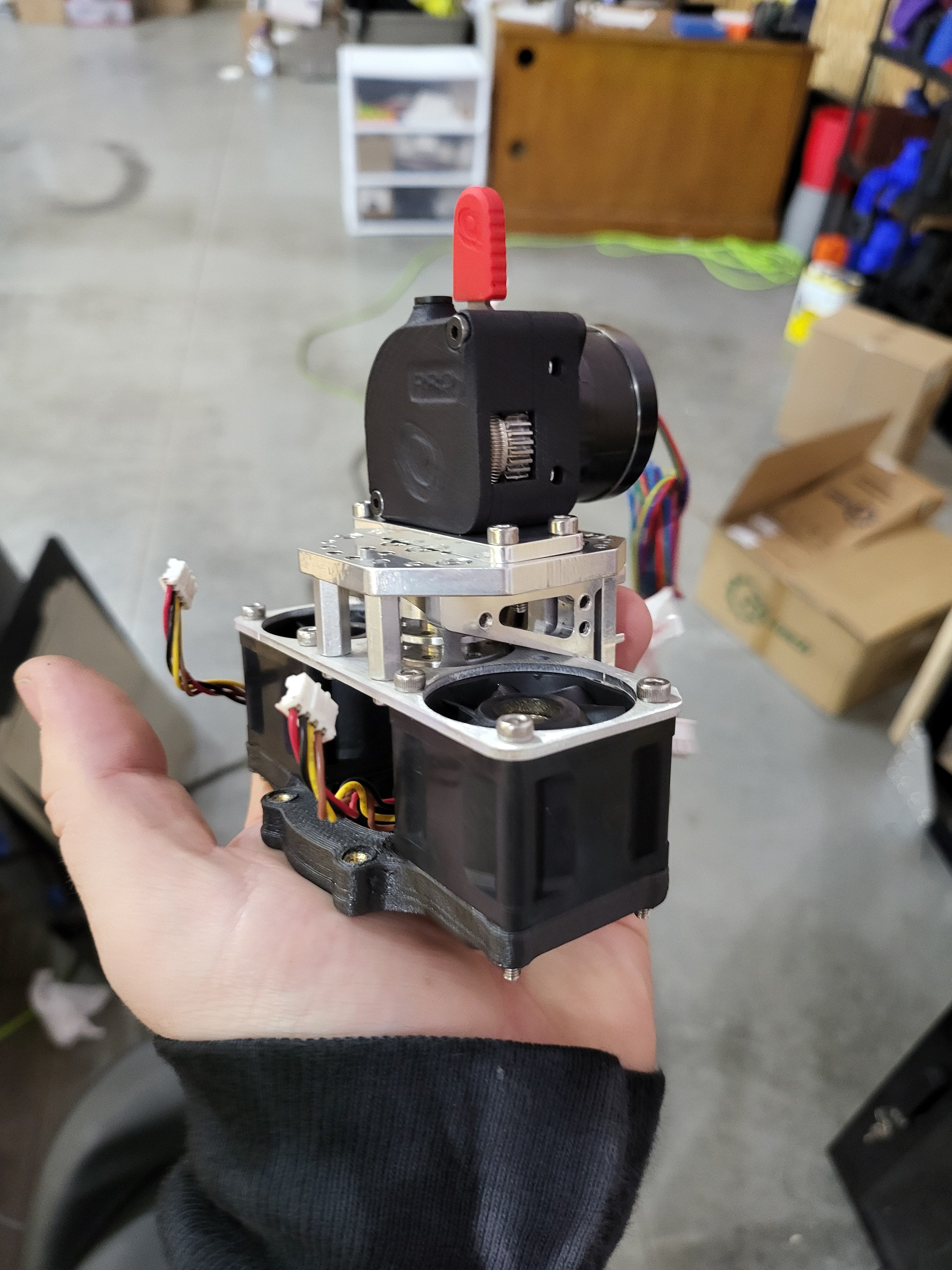

Introducing the Calamity Toolhead, currently in Open Beta (and now shipping!) - An easy-to-maintain, rigid, and fully metal toolhead that eliminates yet another failure point in your 3d printer for better productivity
CAD: https://github.com/lukeslaboratory/Calamity-Toolhead

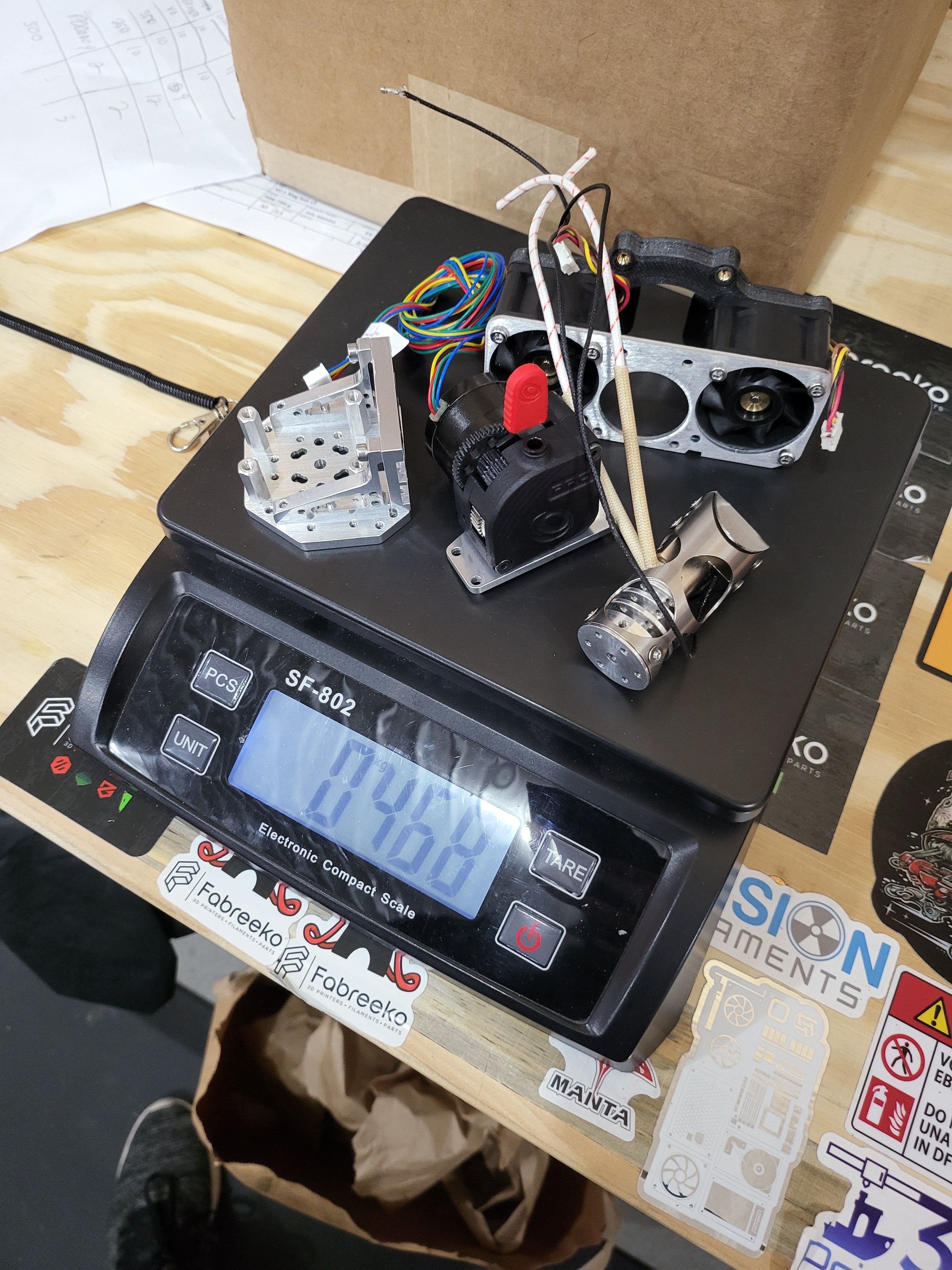

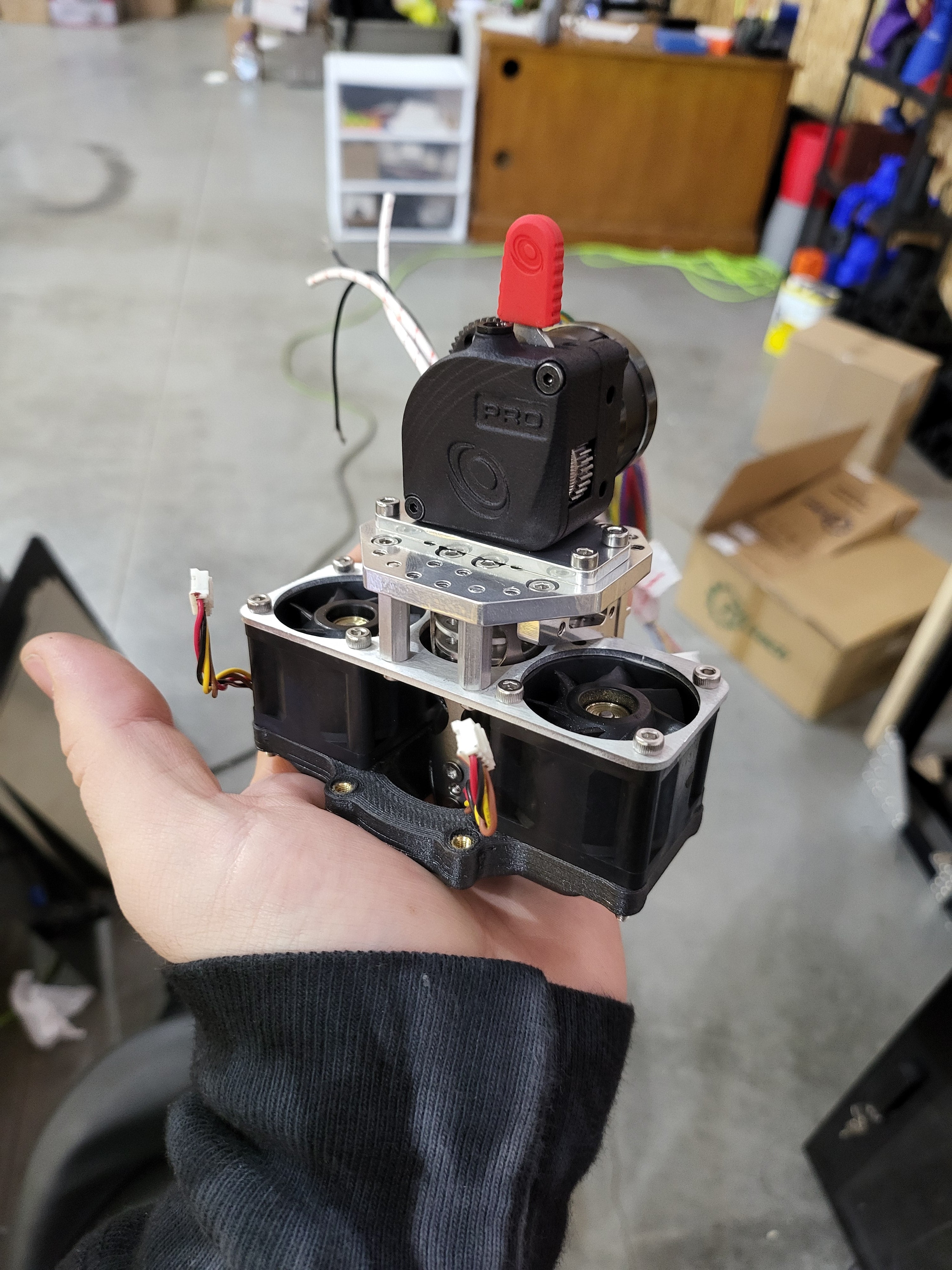

Fully compatible with Voron belt paths up to 10mm wide (Only with mgn12 rail), the Calamity Toolhead provides a good balance of strength , weighing in fully loaded under 500g with a Chube air, Lgx Lite pro, and 3628 fans.
Metal Toolhead is at its maximum 55.20 mm wide before fans - Should be compatible with Printers for Ants with 4010 fans
Key Features:
- Voron Belt Path Compatible (up to 10mm belt on MGN12 version)
- Common Hotend Patterns - Chube, Goliath/Dragon/V9, and Mosquito patterns all integrated
- Currently compatible with 4 extruders - Sherpa, LGX Lite Pro, vzHextrudort, and A3DP FXD. More extruders TBD (Currently planning on LGX, LGX Metal, Orbiter v2, Chariot, OA/DFA)
- Extra mounting holes for whatever you feel like attaching - New fan configurations, filament sensors, different extruders, LEDS, Toolboards, Wire management, and whatever else you can dream up.
- Wire Routing accommodations integrated to keep toolhead maintainable and attractive
Currently compatible fan setups:
- Dual 3628 Fans with Beacon Mount
- YOUR FAN DESIGN GOES HERE
A limited quantity of Beta Toolheads are available. Price will likely increase slightly after beta. Beta Toolheads made by Verris, who will be receiving a portion of proceeds of beta run.
Includes:
- MGN Mounting Plate
- Top Plate
- 2x Support Brackets
- All Hardware to connect to itself
Configurable:
- Fans (one option right now) - Ducts printed in PC-CF
- Extruder Selection
- MGN9H vs MGN12H
- Beacon Inclusion!
