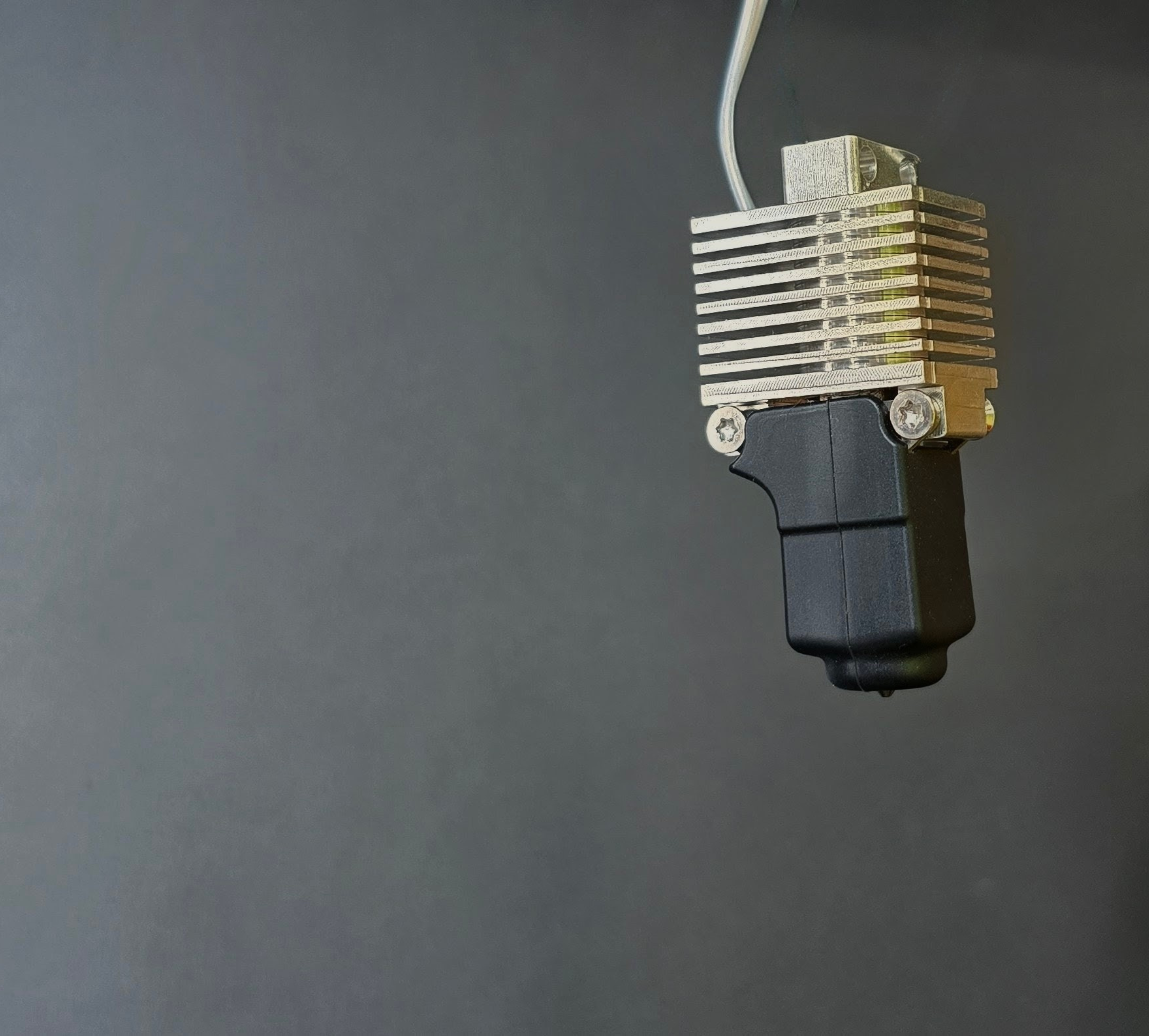

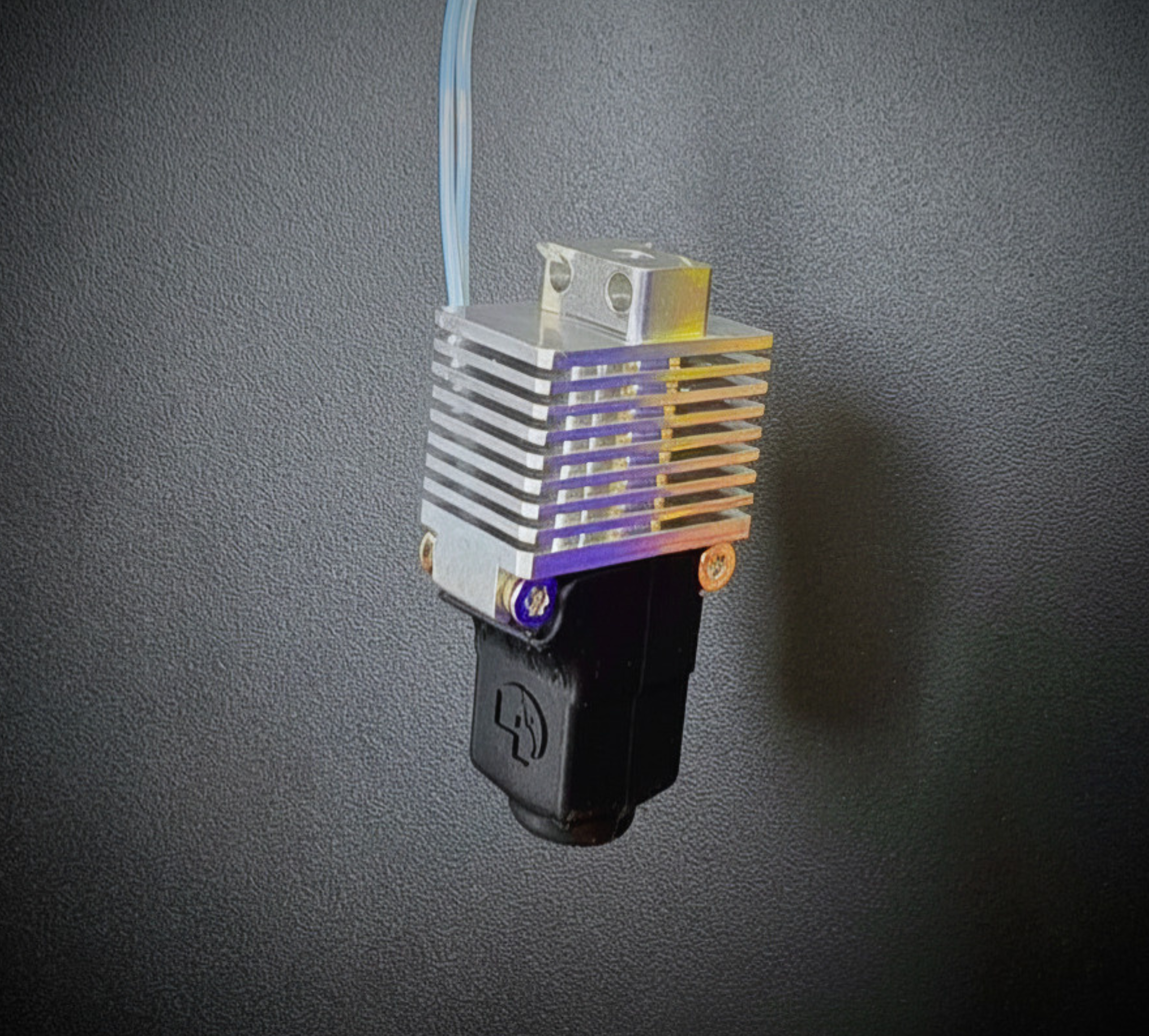

Pika Hotend for Qidi Plus4
- Regular price
-
$110.00 - Regular price
-
$110.00 - Sale price
-
$110.00
If you're looking for the best possible hotend for your Qidi Plus4, you've come to the right place. Featuring best-in-class flow, enhanced durability, on-toolhead FIN nozzle changes, and excellent heatbreak performance, the Pika hotend is the last hotend you'll need to buy for your Qidi Plus4.
Tungsten Carbide .4 orders may take a little longer while we restock nozzles.
NOW SHIPPING
Why Buy Pika?
- Unibody Titanium Heatbreak for ULTIMATE abrasive resistance
- Titanium Wings to Protect your hotend from untimely heatbreak bending
- Nickel-Plated Copper Heatblock for maximum flow & strongest parts
- Removable FIN nozzles for quick size changes and rapid repair
- 33mm Meltzone for maximum performance.
Every Purchase Includes:
- Bare Hotend
- Nozzle Selected
- 2x Silicone Boots
- 88w heater
- Small pre-heatbreak Capricorn Tube
- 8T Torx Driver
Important Considerations of the Qidi Plus 4 Pika:
- The stock Qidi Plus4 heater is incompatible: use the included Bambu-size heater.
- You will need to re-use the stock thermocouple.
- The hotend is 500 °C rated. The silicone sock has a long life up to 320 °C, and a reasonable, limited life at 330 to 350 °C, where it will be a consumable.
- Currently, we do not offer "prebuilt" heater+thermocouple combos, the included heater will need to be soldered/crimped into the existing harness.
Before you install
- Hot-tighten before your first print. Nozzles ship hand-tight. With the hotend installed, heat above your hottest print temperature (300 °C covers most filaments) and snug the nozzle with a 6 mm socket to 2 to 3 Nm.
- Pack the heater in thermal paste and seat the stock thermocouple fully. Never put paste or anti-seize on the nozzle threads.
- Run a PID tune after install. The 88 W heater is stronger than stock.
- Print PLA and PETG with the door or lid open. Long prints in a closed chamber can heat-soak the hotend and clog.
Install notes for this hotend | Troubleshooter | Pika-ify your slicer profile
Pair it with: spare silicone socks and a second FIN nozzle in plated copper, hardened steel, tungsten carbide, or Bondtech CHT.
Nozzle Wrench: FIN nozzles can be removed with a 6mm hex
Manufactured & Assembled in Wrightstown, WI USA.
Couldn't load pickup availability
Pika hotend for the Qidi Plus4
The last hotend you'll need to buy for your Qidi Plus4.
Best-in-class flow, enhanced durability, on-toolhead FIN nozzle changes, and excellent heatbreak performance.
Why upgrade to Pika?
Flow
Serious flow
Your filament and setup may vary. Copper and CHT nozzles will flow more than hardened steel in general. Generally, the Qidi Plus4 is extruder limited.
Titanium
Keeps heat where it belongs
High-strength titanium heatbreak and supports keep heat where it belongs and prevent bent or snapped hotends.
- Unibody titanium heatbreak for ultimate abrasive resistance.
- Titanium wings protect your hotend from untimely heatbreak bending.
- Nickel-plated copper heatblock for maximum flow and the strongest parts.
Nozzles
Any FIN nozzle. Any size.
One hotend. Every material. Change between sizes and hardness right on the toolhead with a 6 mm hex socket. No disassembly or wiring.
What's in the box
- Pika hotend
- Selected nozzle
- 2 silicone boots
- Heater retention
- Thermal grease
- 88 W heater
- Internal PTFE column
- Heater coupler materials (Microfit 3.0)
- 8T Torx driver
Compatibility
Drop-in compatible with the Qidi Plus4, copying the mounting location, installation method and thermocouple.
The stock heater does not fit, so we supply a compatible heater that for now is spliced into the existing harness. Reuse the stock thermocouple.
FAQs
Delivery info
All in-house materials are currently in stock. We may have temporary shortages of externally produced goods as they are shared across products
Compatibility
This product is drop-in compatible with the Qidi Plus 4, copying mounting location, installation method, and thermocouple.
Currently, the stock heater does not fit (its too large) and so we supply a compatible heater that for the time being will need to be spliced in manually.
At a future date, we may source drop in electronics, but at this time slight modifications are required.
Flowrates
Your filament and setup may vary. Copper & CHT nozzles will flow more than hardened steel in general.
Current testing: Up to 45mm3/s with the stock extruder + CHT with ABS.
Generally, the Qidi Plus 4 is extruder limited.
What's in the box?
Every Purchase Includes:
- Bare Hotend
- Selected nozzle
- Silicone Boot
- Heater Retention
- Thermal Grease
- 88w Heater
- Internal PTFE column
- heater coupler materials (Microfit 3.0)
