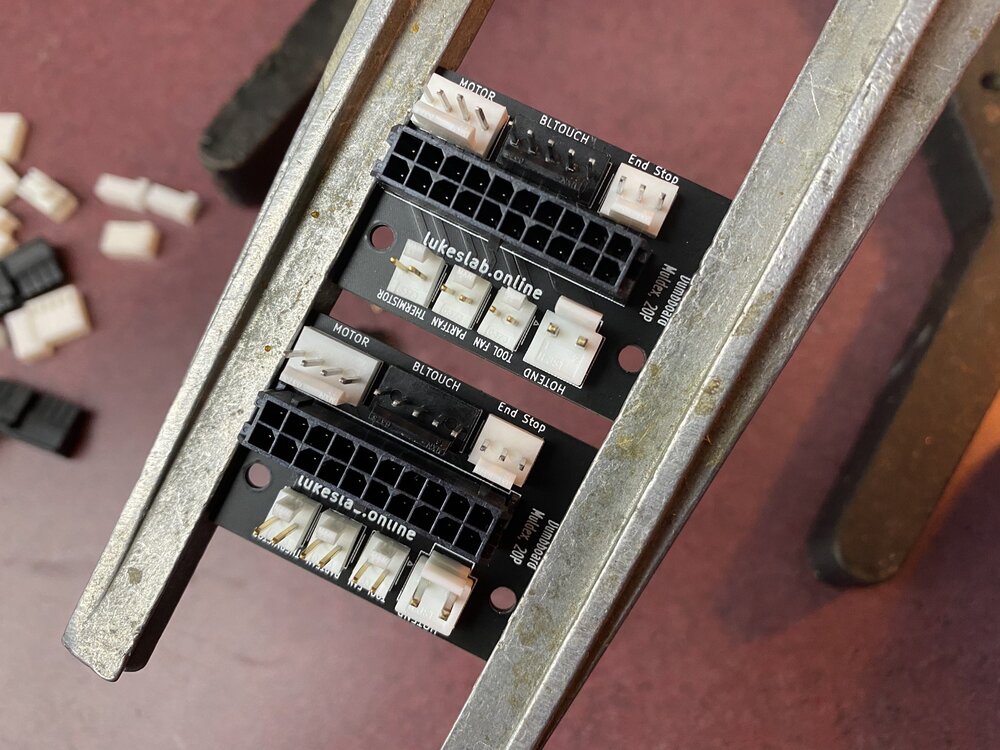

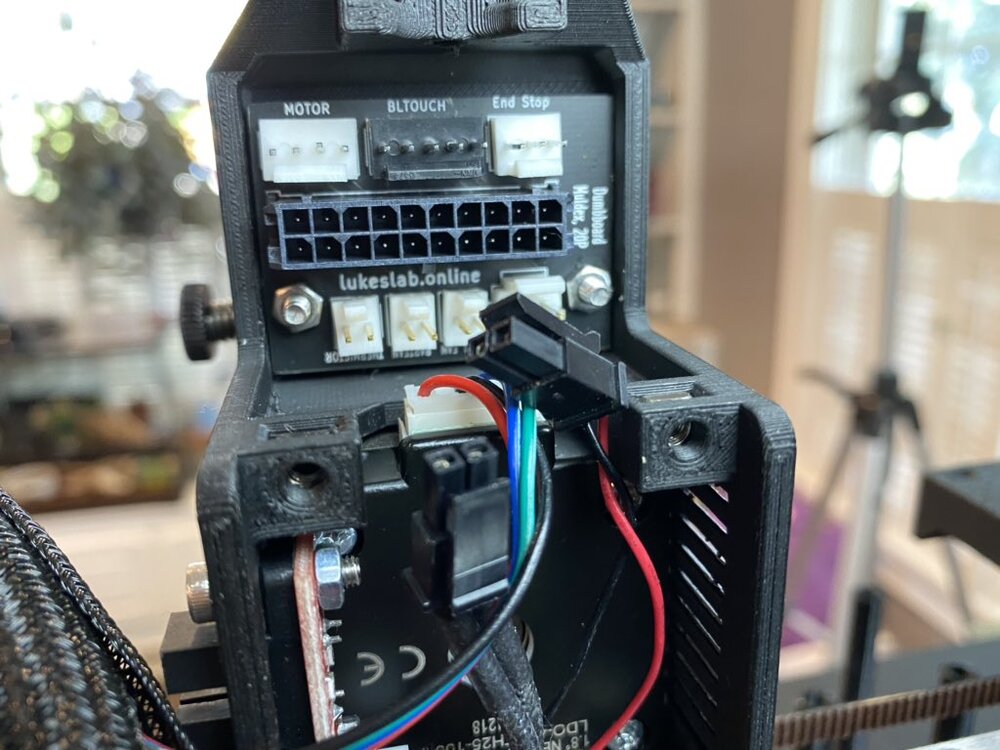

Custom Dumbboards for the Muldex! Photos Courtesy of @dddpworld

Muldex Edition has a few key changes from regular dumbboards

1) Hole Spacing is different! If you’d like to use these for a seperate project, Hole spacing is 35.5mm apart, vs Dumbboard’s standard 34mm.

2)Board size is 42.5x31mm, with the hole centers on both sides 8.13 x 3.56mm spaced from the edges.

3) Different connectoring scheme. 3x 2-pin connectors for Thermistor, Tool Fan, and Part Fan, respectively, 1x 3-pin connector for end stop, 1x 4-pin connector for the extruder motor, and 1x 5-pin connector for a full BLTouch.


  • 18 low-medium current pins (1.5A/pin) for signal and power delivery (Fans, Motor, Sensors)

  • 1 3A circuit [3A] for the hotend

  • Pinout Fully Labelled

Connector Information:

  • Uses Molex Micro-fit 10x2 to connect wherever - Direct Wired in OR to another Dumbboard!

  • Uses Molex KK 254 connectors for signal-out

  • Uses JST VH 3.96mm for high-current circuit

  • All connectors included to connect existing harnesses to board

Total connections - Male Headers and Female Connectors included with Crimp pins unless otherwise noted.

  • 3x 2pin Molex KK 254

  • 1x 3pin Molex KK 254

  • 1x 4pin Molex KK 254

  • 1x 5pin Molex Kk 254

  • 1x 20P 10x2 Molex Micro-fit (Female PCB header only)

  • 1x 2pin JST VH 3.96mm
