Jubilee Cable-Driven Toolchanger Hardware-only kit V2.1

Regular price: $145.00
Regular price
Sale price: $145.00

Shipping calculated at checkout.

Tool Qty 2 3 4 5 6

Motor Included? Yes No

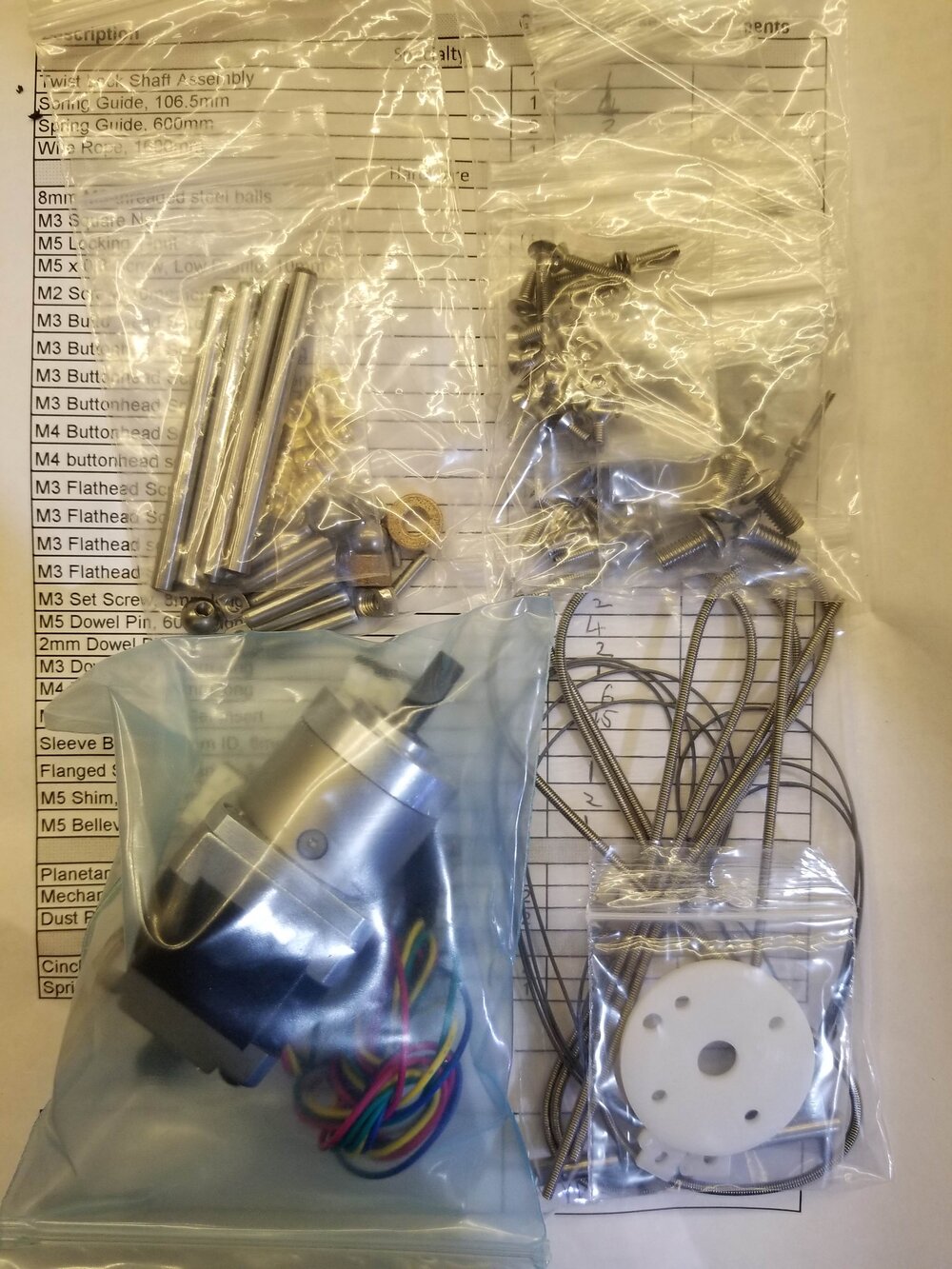

All the parts you need for the Jubilee Toolchanger with provisions for mounting up to 6 tools

Looking for V1? Contact me Luke@Lukeslab.online and I’ll help you get what you need.

Each Kit Contains:

Specialty
QTY

Twist Lock Shaft Assembly
1

REL Spring
1

Spring Guide, 600mm
2

Wire Rope, 1600mm
1

Wire Lug
2

Fasteners
QTY

M3 Square Nut
2

M5 Locking T-nut
2

M2 Screw, 10mm long
3

M3 Buttonhead Screw, 6mm long
7

M3 Buttonhead Screw, 8mm long
13

M3 Buttonhead Screw, 10mm long
8

M3 Buttonhead Screw, 12mm long
4

M3 Buttonhead Screw, 16mm long
1

M3 Set Screw, 8mm long
3

M5 Buttonhead Screw, 14mm long
2

Other Hardware
QTY

REL Hub
1

M3 Washer
2

M4 Dowel Pin, 20mm long
6

M3 Tapered Heat Set Insert
13

Sleeve Bearing, 6mm ID, 9mm OD, 10mm length
1

M6 Shim, 0.2mm thick
1

M5 Shim, 0.2mm thick
3

Electrical
QTY

Planetary Stepper (optional)
1

Mechanical Limit Switch
2

Dust Proof Limit Switch
2

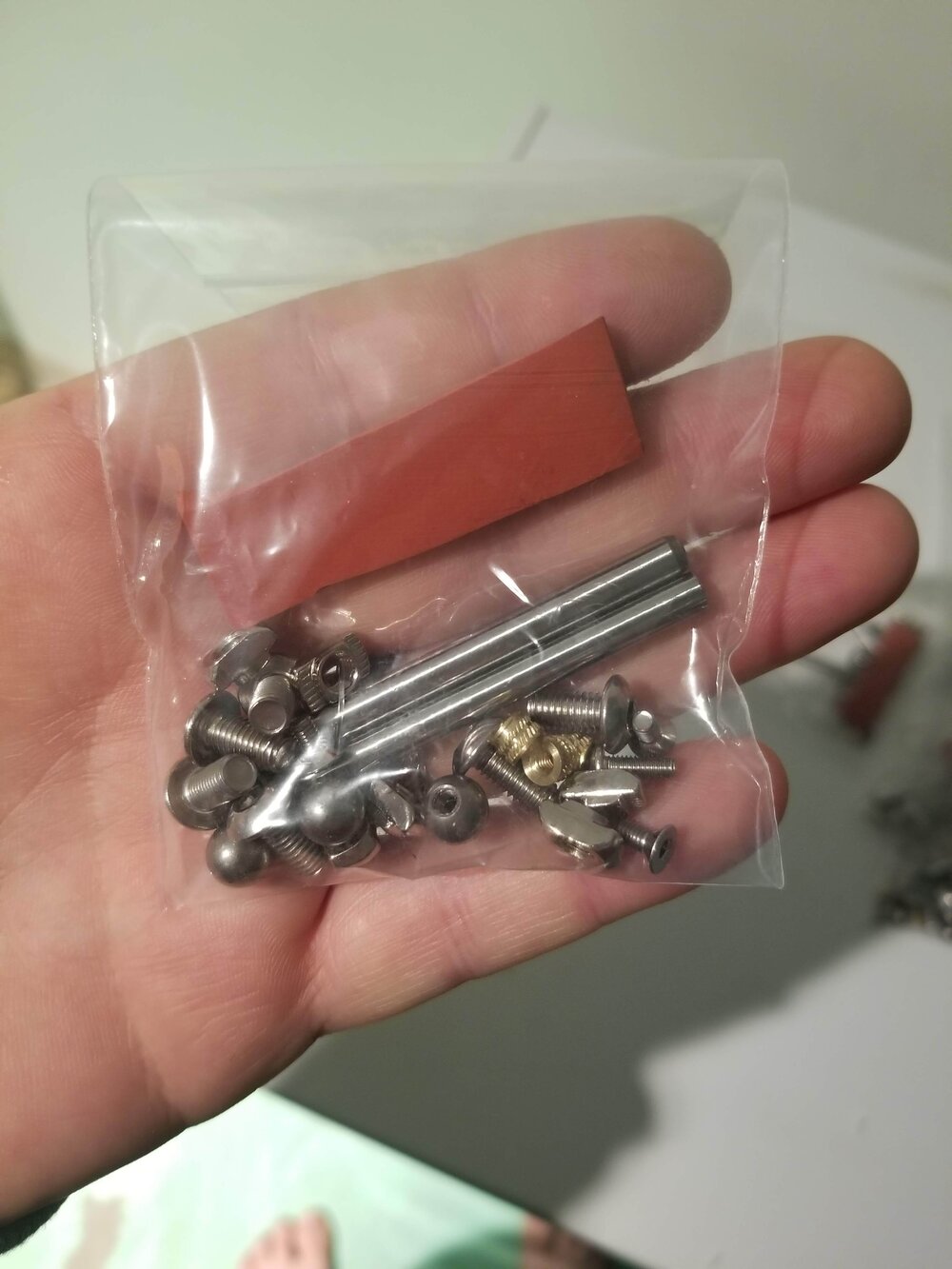

Parts Contained in Each Tool Kit

Item
QTY

M5x60 Dowel Rod
2

M3x6 Buttonhead
6

M3x10 Buttonhead
4

M3x12 Buttonhead
2

M3x40 Buttonhead Screw
3

M3x8 Flathead Screw
6

M3x6 Flathead Screw
11

M5x10 Buttonhead Screw
6

M3 Heat Tapered Insert
9

M5 Hammer Nut
6

Wiper
1

M3 Threaded 8mm Balls
3

O-rings
2

Wedge Plate
1
