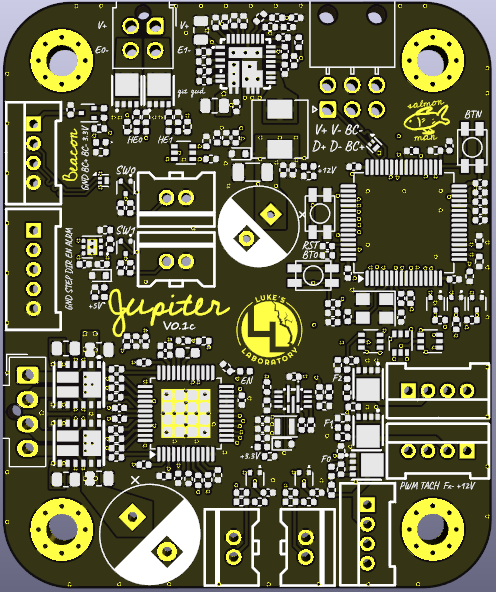

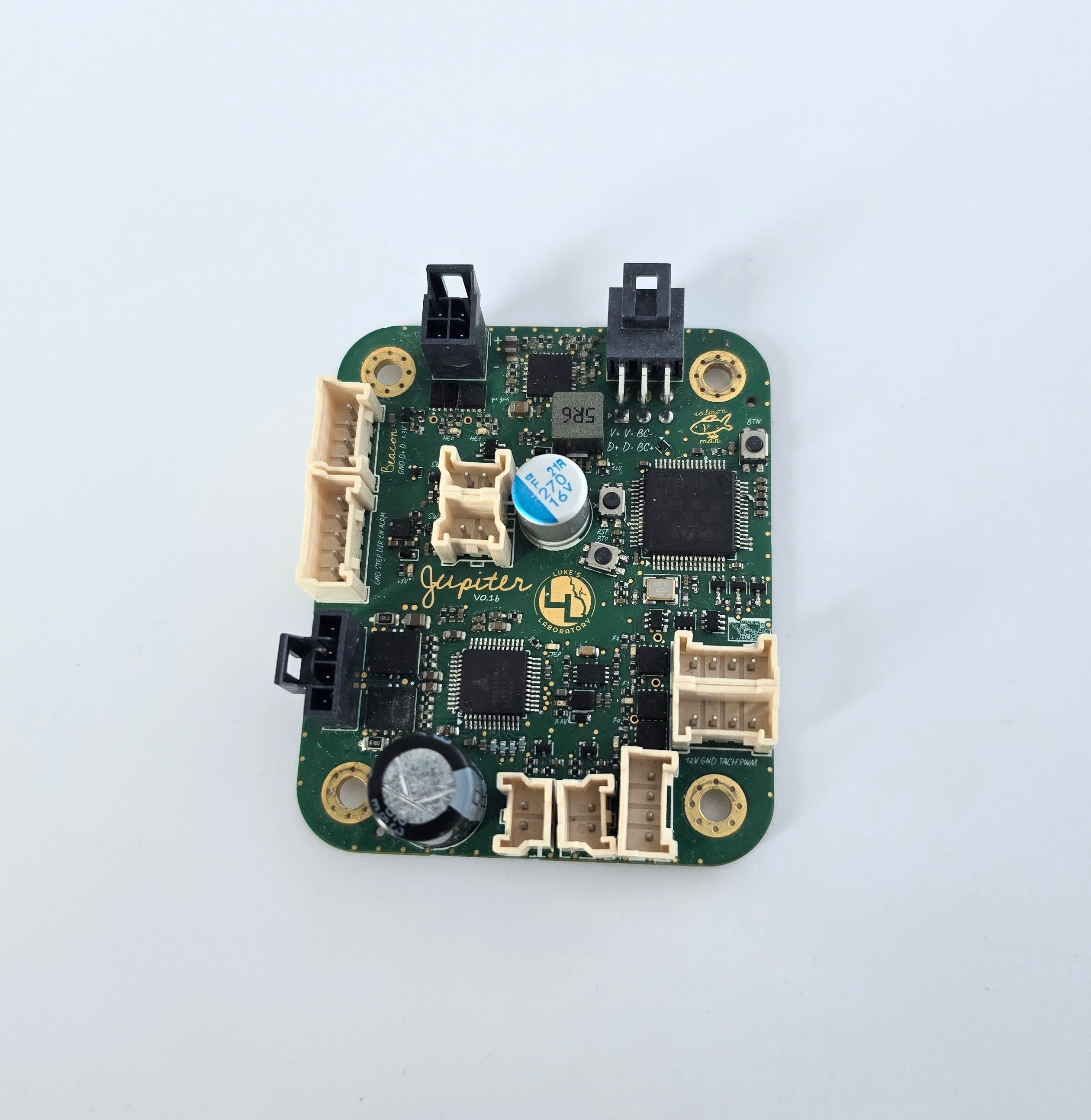

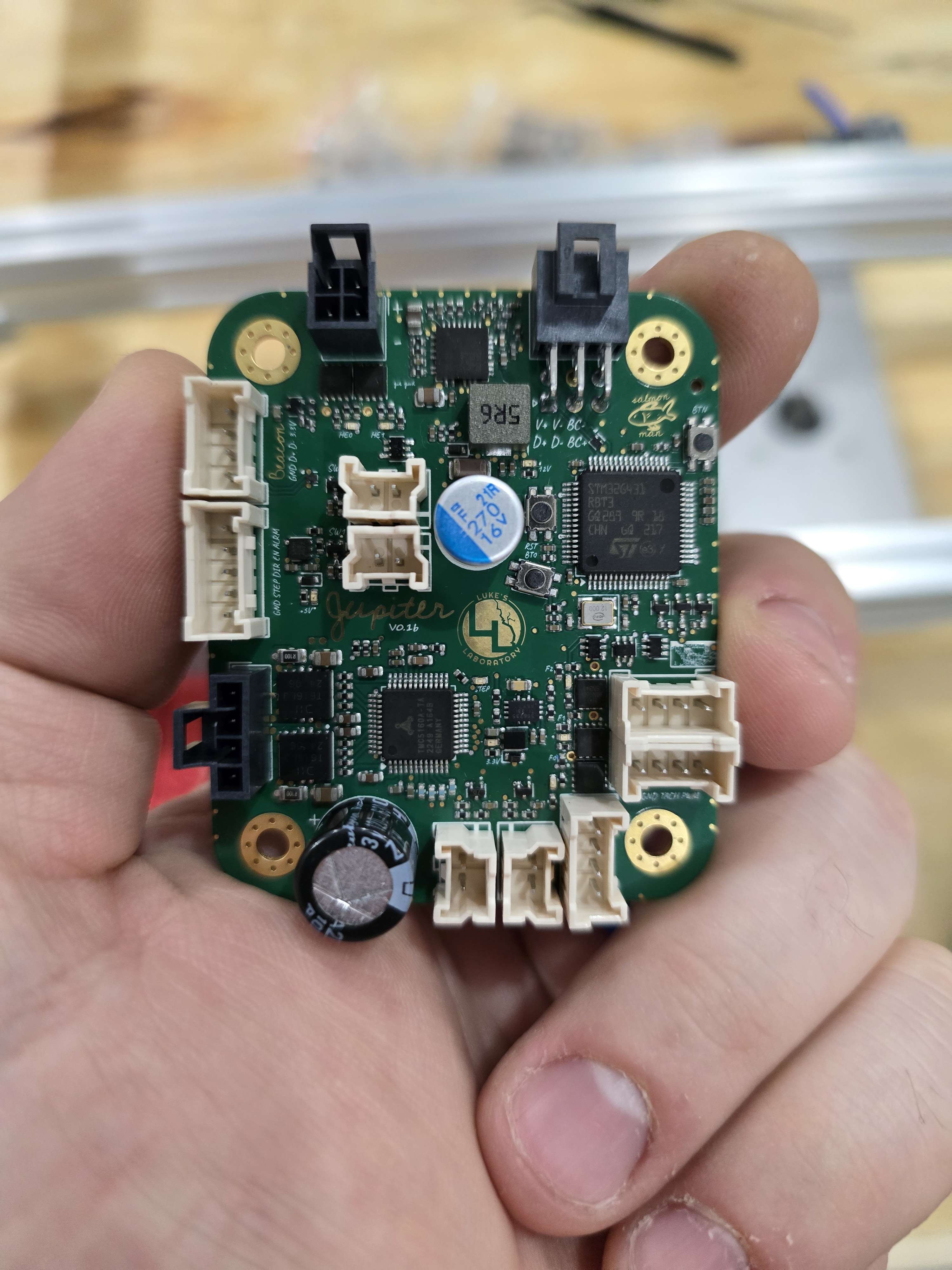

Jupiter Toolboard

Introducing a new high power usb toolboard intended for professional and high-temperature, or high flow users looking to get the most out of their 3d printer!

This listing is currently for *beta* boards - pricing isn't finalized yet

Key Features:

• 48v Compatible (supports 24-48v)

• 5160 stepper, targeted for extruders requiring less than 2A

• 3x 4pin 12v fan headers, independently controllable each with tachometer and dedicated PWM support

• 2x thermistor with 2.2k pullups

• 3x onboard thermistors for direct temperature monitoring of the board in key areas
• 2x switch ports
• High temperature connectors (sherlock and nanofit)
• Beacon port onboard

• Beacon Condom integrated for extreme temperatures
• Pass-thru USB enables single-connector to toolhead for easy setup and maintenance
• MOSFET for powering off beacon when using non-critical MCU
• Step, DIR, and EN breakout with extra "alarm" pin input

• Designed for 100c ambient environments

• 2x heater ports capable of over 8a output

• 6 layer pcb with large exposed copper pads for heat dissipation, single-sided assembly for better heatsink access if desired
• Lone button for macros


Jupiter will also come with an option for a "moon" daughterboard that will make it easy to use!

• Powered USB hub with 7 total ports (2x ports used per Jupiter, Jumpers/dip switches will allow 2nd Jupiter to toggle on/off

• Up to 48v fused VIN inlet supporting 2x jupiters
• Remaining USB A out ports will be useful in connecting remainder of USB accessories (camera, other MCU's)
