Lukes Laboratory

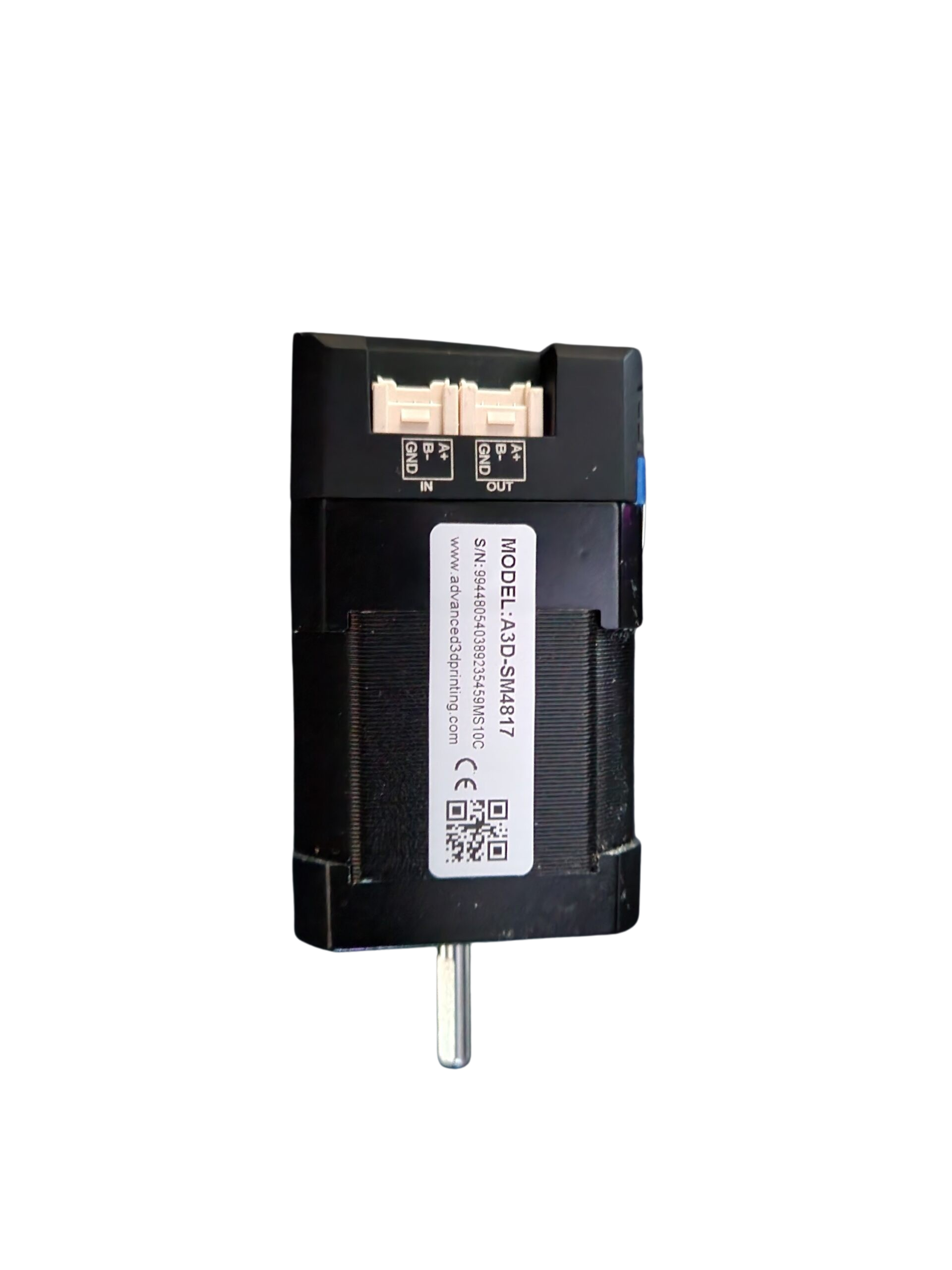

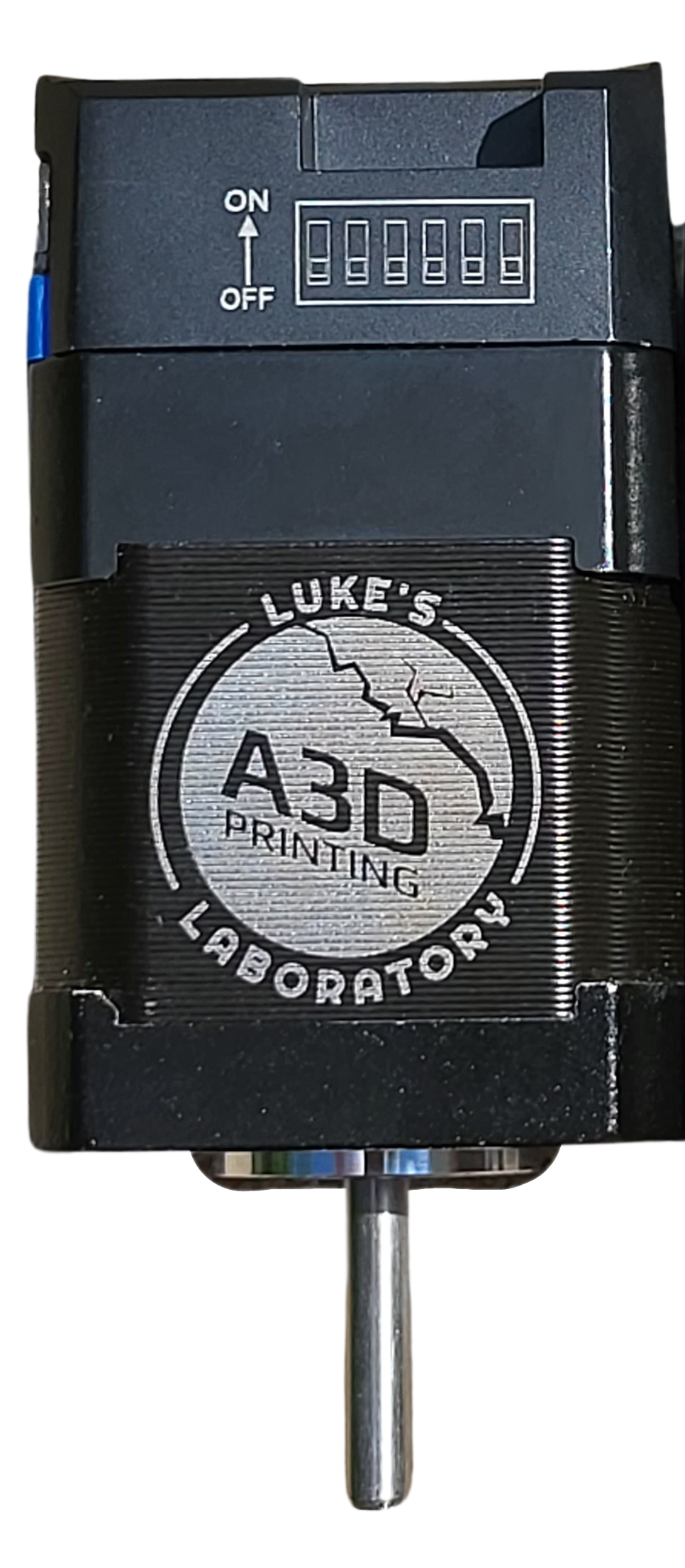

StepServo A3dp-4806

Regular price
$300.00
Regular price
$300.00
Sale price
$300.00
Shipping calculated at checkout.
Accessories

In Stock - Ships within 2 days!

Brand new product that finally provides an easy to integrate, closed loop solution that goes well beyond existing closed-loop steppers.

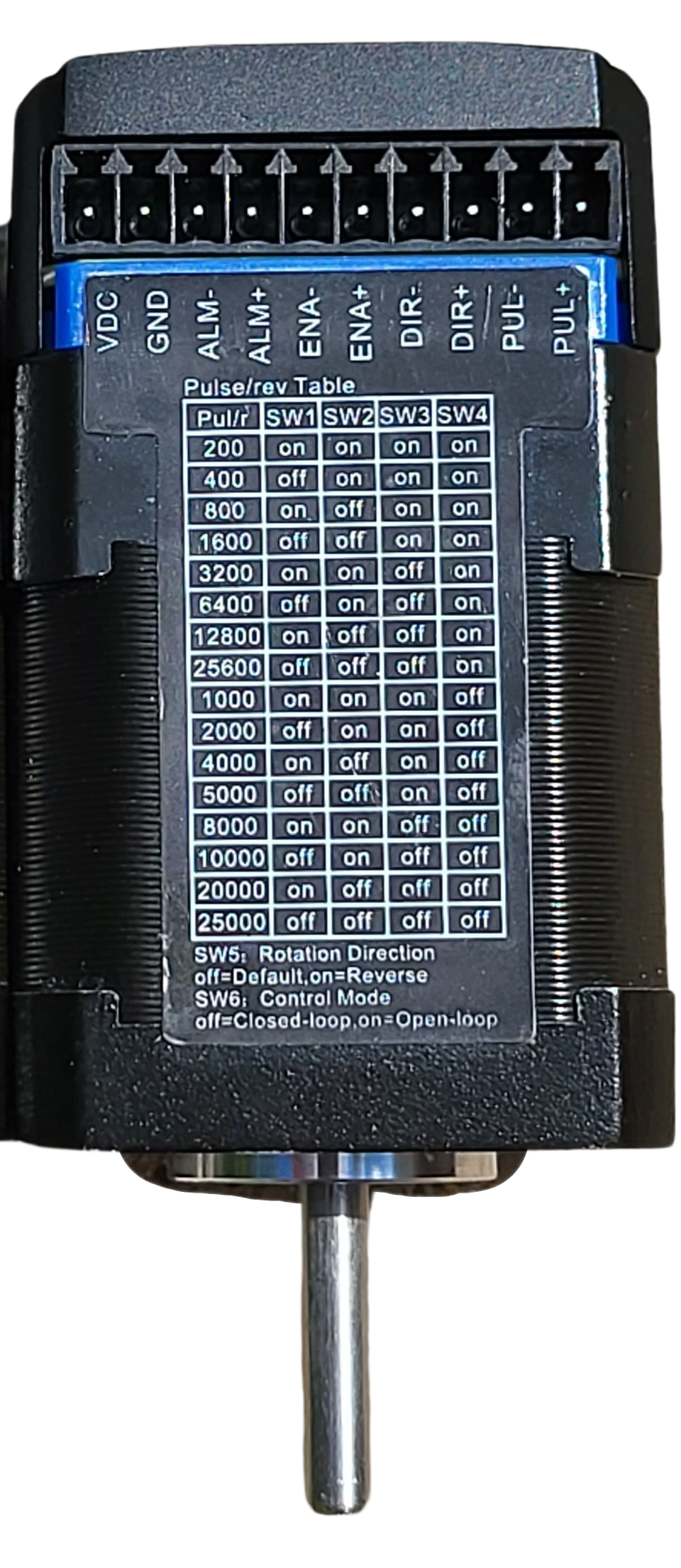

Fully integrated unit (hybrid servo controller integrated) means 1:1 replacement of existing Nema 17 motors  without mounting extra controllers elsewhere. Simple, labeled inputs with quick-disconnect screw terminals for excellent uptime.

Key Features

  • Step/Dir (std or differential), CW/CCW pulse, and future Modbus motion inputs

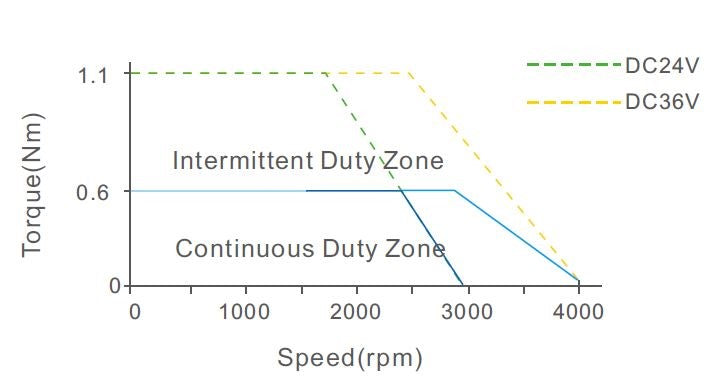

  • 12-36v (recommend 24v) with auto-current tuning (12A max instantaneous output!)
  • Live modbus programming, troubleshooting, tuning, and logging
  • Hybrid Servo control for advanced positioning (using Field Oriented Control)
  • 16384 position encoder for excellent positioning accuracy
  • Fully integrated controller for compact mounting
  • Custom Coil and controller optimized towards 3d printing (CNC variants planned)
  • Exceptional reliability
  • On-motor Vibration tuning - Can input shape directly on the motor! - take out more vibrations before they start!
  • Software improvements coming - will get better over time with integrations to klipper, RRF, tuning

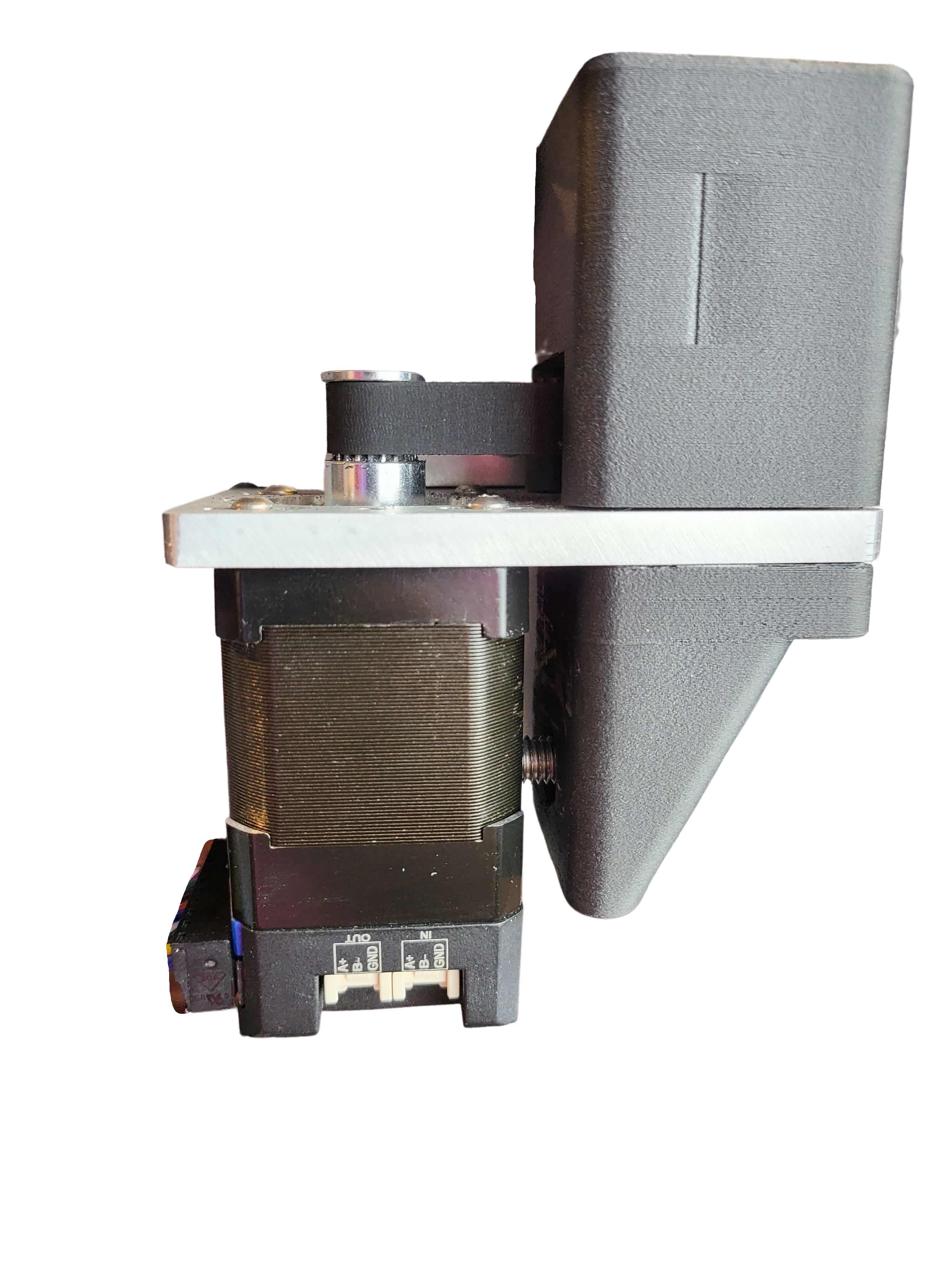

  • Drop in for nema 17 steppers - put it anywhere!

Works with 3.3v signaling if using falling signal. 5v signaling recommended.
